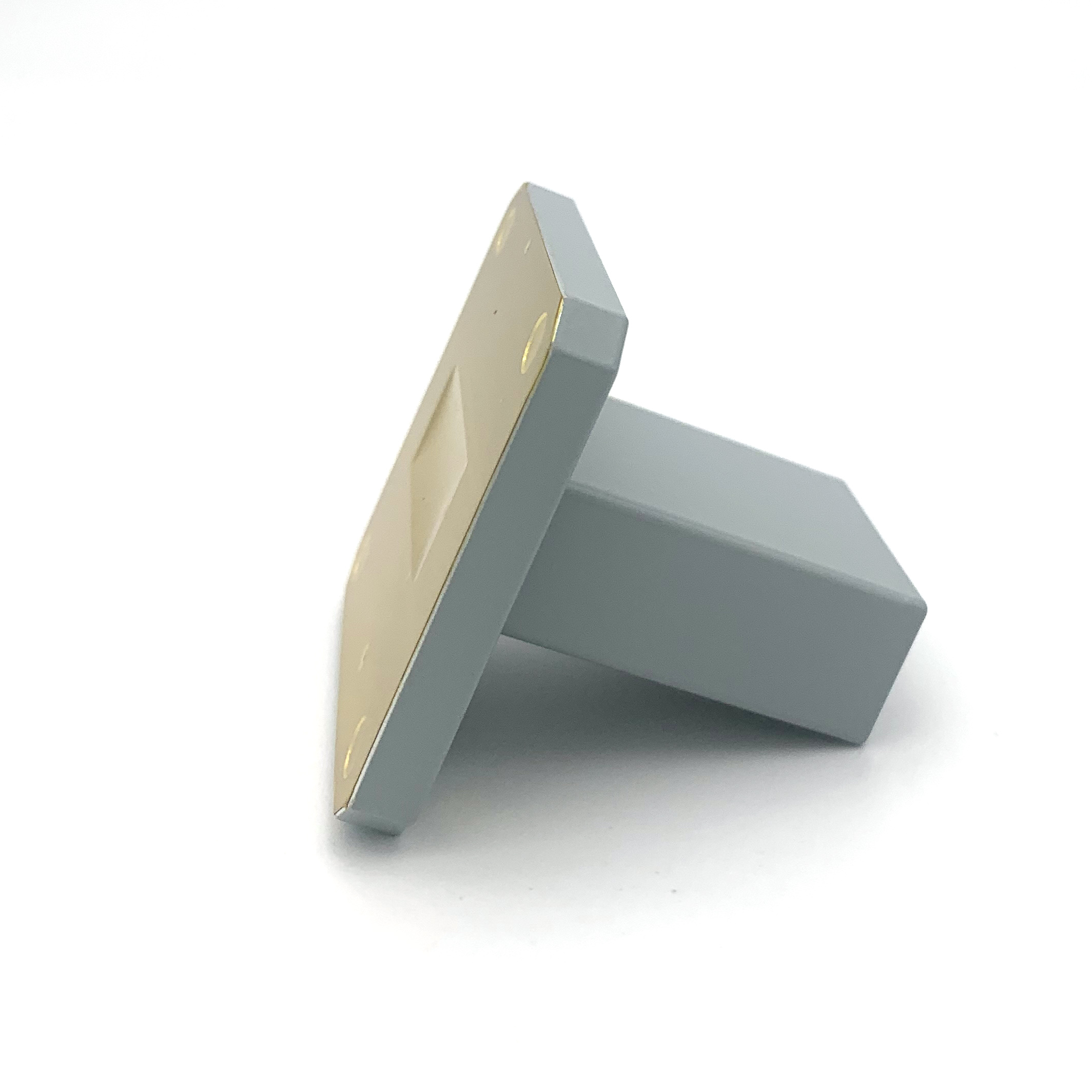

Waveguide Low Power Load(0.25~50W)

Zyen’s Waveguide Low Power Load, from WR28 to WR975, power handling from 0.25 to 50W. Good VSWR 1.05, Custom power and optimized specifications are available. Contact us with your requirement. Standard black paint, others color is available. flange is compatible with EIA Standard and IEC Standard, check details with us. Some parts in stock, standard lead time 2 to 3 weeks.

P/N	WG Size	Frequency Range (GHz)	Power Handling (W)	VSWR
975LPL-XX	WR975	0.75-1.12	25-50	1.05~1.20
770LPL-XX	WR770	0.96-1.45	25-50	1.05~1.20
650LPL-XX	WR650	1.12-1.70	25-50	1.05~1.20
510LPL-XX	WR510	1.45-2.20	25-50	1.05~1.20
430LPL-XX	WR430	1.70-2.60	15-50	1.05~1.20
340LPL-XX	WR340	2.20-3.30	12-50	1.05~1.20
284LPL-XX	WR284	2.60-3.95	10-50	1.05~1.20
229LPL-XX	WR229	3.30-4.90	10-50	1.05~1.20
187LPL-XX	WR187	3.95-5.85	10-50	1.05~1.20
159LPL-XX	WR159	4.90-7.05	10-50	1.05~1.20
137LPL-XX	WR137	5.85-8.20	10-50	1.05~1.20
112LPL-XX	WR112	7.05-10.0	5-50	1.05~1.20
90LPL-XX	WR90	8.20-12.4	5-50	1.05~1.20
75LPL-XX	WR75	10.0-15.0	2-50	1.05~1.20
62LPL-XX	WR62	12.4-18.0	2-50	1.05~1.20
51LPL-XX	WR51	15.0-22.0	2-50	1.05~1.20
42LPL-XX	WR42	18.0-26.5	0.5-50	1.05~1.20
34LPL-XX	WR34	22.0-33.0	0.5-50	1.05~1.20

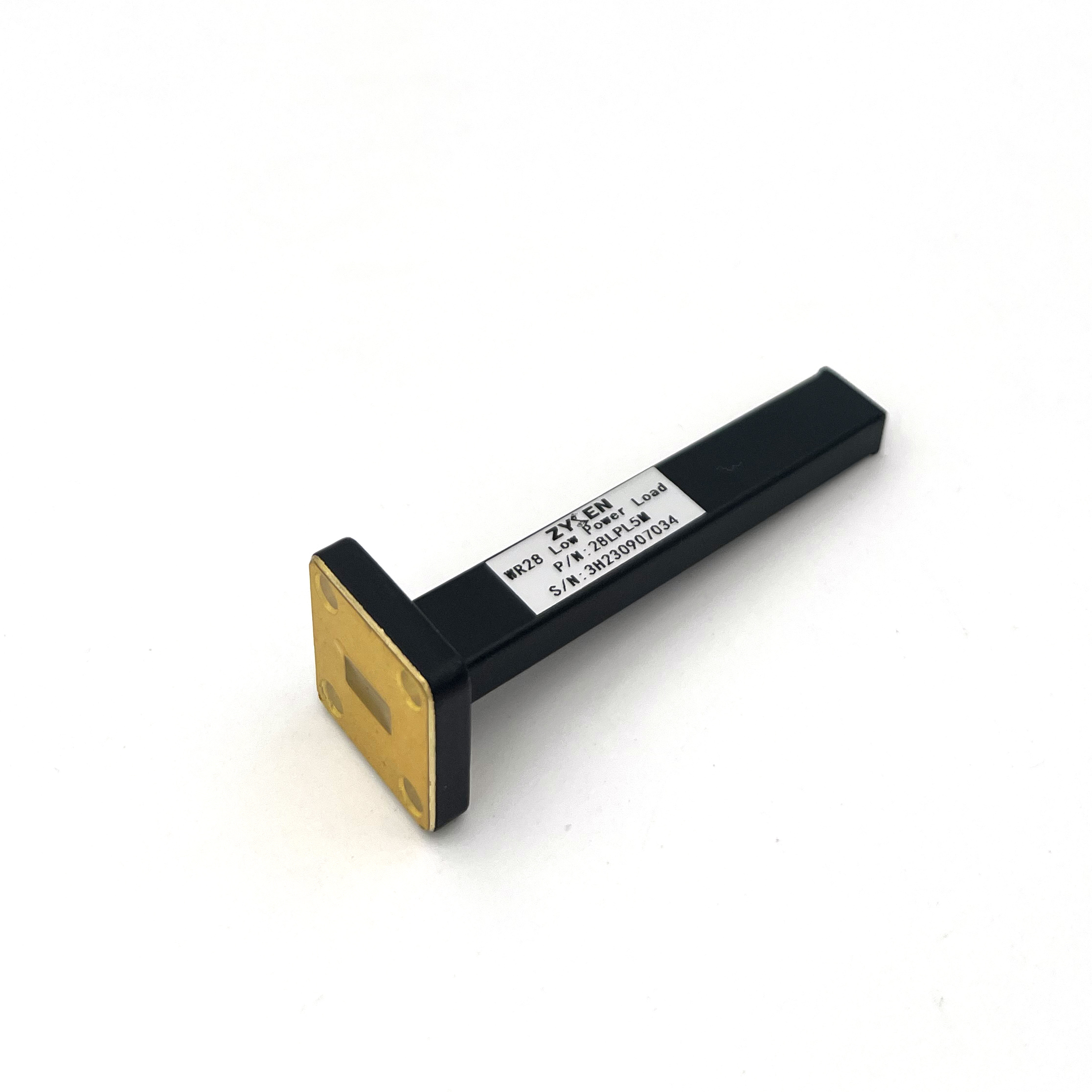

28LPL-XX	WR28	26.5-40.0	0.25-10	1.05~1.20
22LPL-XX	WR22	33.0-50.0	0.25-5	1.10~1.20
19LPL-XX	WR19	40.0-60.0	0.25-3	1.10~1.20
15LPL-XX	WR15	50.0-75.0	0.25-3	1.10~1.20
12LPL-XX	WR12	60.0-90.0	0.25-3	1.10~1.20
10LPL-XX	WR10	75.0-110.0	0.25-3	1.10~1.20
