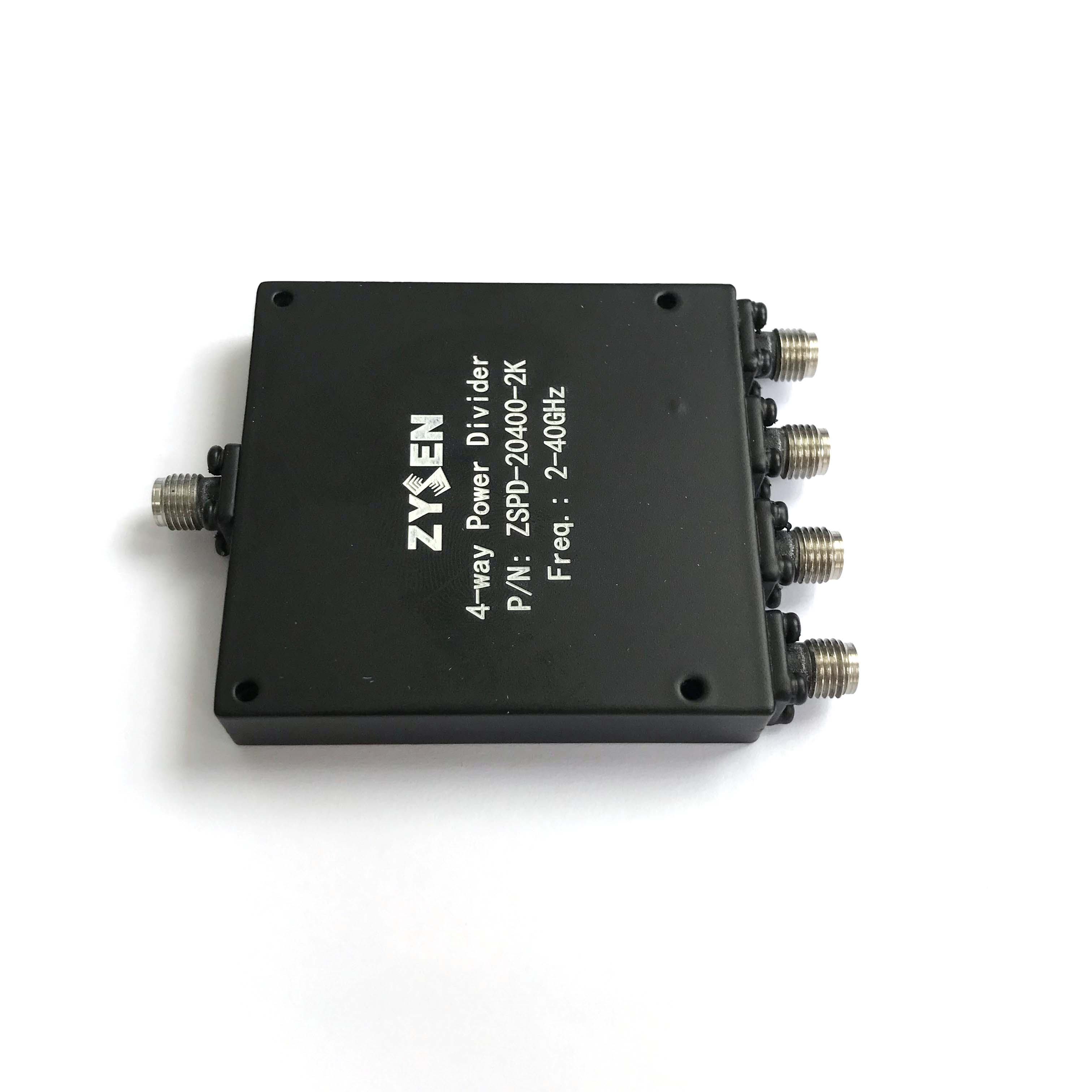

4-Way Power Divider

Zysen offers 2-way to 32-way Power Divider(Combiner), cover 0.5 to 54GHz, SMA,N, 2.92mm connector are available, frequency band can be customized, contact us with your requirement.

P/N	Ways	Freq. Range (GHz)	I.L. (dB) Max	Isolation (dB) Max	Amp. Balance (±dB) Max	Phase Balance (±°) Max	VSWR Max	Connector	Size (LxWxH) (mm)
ZSPD-0520-4S	4	0.5-2	1.0	20	0.3	3	1.25	SMA	76X56X10
ZSPD-1020-4S	4	1-2	0.6	20	0.3	3	1.25	SMA	56X43X10
ZSPD-2040-4S	4	2-4	0.6	20	0.3	3	1.3	SMA	56X43X10
ZSPD-1040-4S	4	1-4	1.1	20	0.3	4	1.3	SMA	56X43X10
ZSPD-0560-4S	4	0.5-6	1.3	17	0.3	3	1.4	SMA	166x59x10
ZSPD-0560-4SZ	4	0.5-6	1.7	20	0.5	5	1.4	SMA	78x56x12.7
ZSPD-0860-4N	4	0.8-6	1.5	16	0.5	5	1.5	N	125x75x20
ZSPD-4080-4S	4	4-8	1.0	20	0.3	4	1.3	SMA	56X43X10
ZSPD-1080-4S	4	1-8	2.2	20	0.4	6	1.5	SMA	70.5X56X10
ZSPD-10124-4S	4	1-12.4	2.8	16	0.6	6	1.6	SMA	90X75X10
ZSPD-2080-4S	4	2-8	1.4	18	0.4	4	1.4	SMA/N	50X56X10
ZSPD-2080-4N	4	2-8	1.4	18	0.4	4	1.5	N	91x49x20
