100W Fixed Attenuator

Zysen offers 100W fixed attenuators with attenuation range from 3dB to 60dB, covering DC to 18GHz. Available in SMA, N, and DIN 7/16 connector types. Maximum VSWR ranges from 1.20 to 1.45 depending on frequency. Compact and rugged housing designs available in cylindrical or rectangular form factors. Customized attenuation values and mechanical dimensions（round/square) are supported. Quick lead time available. Contact us with your specific requirements.

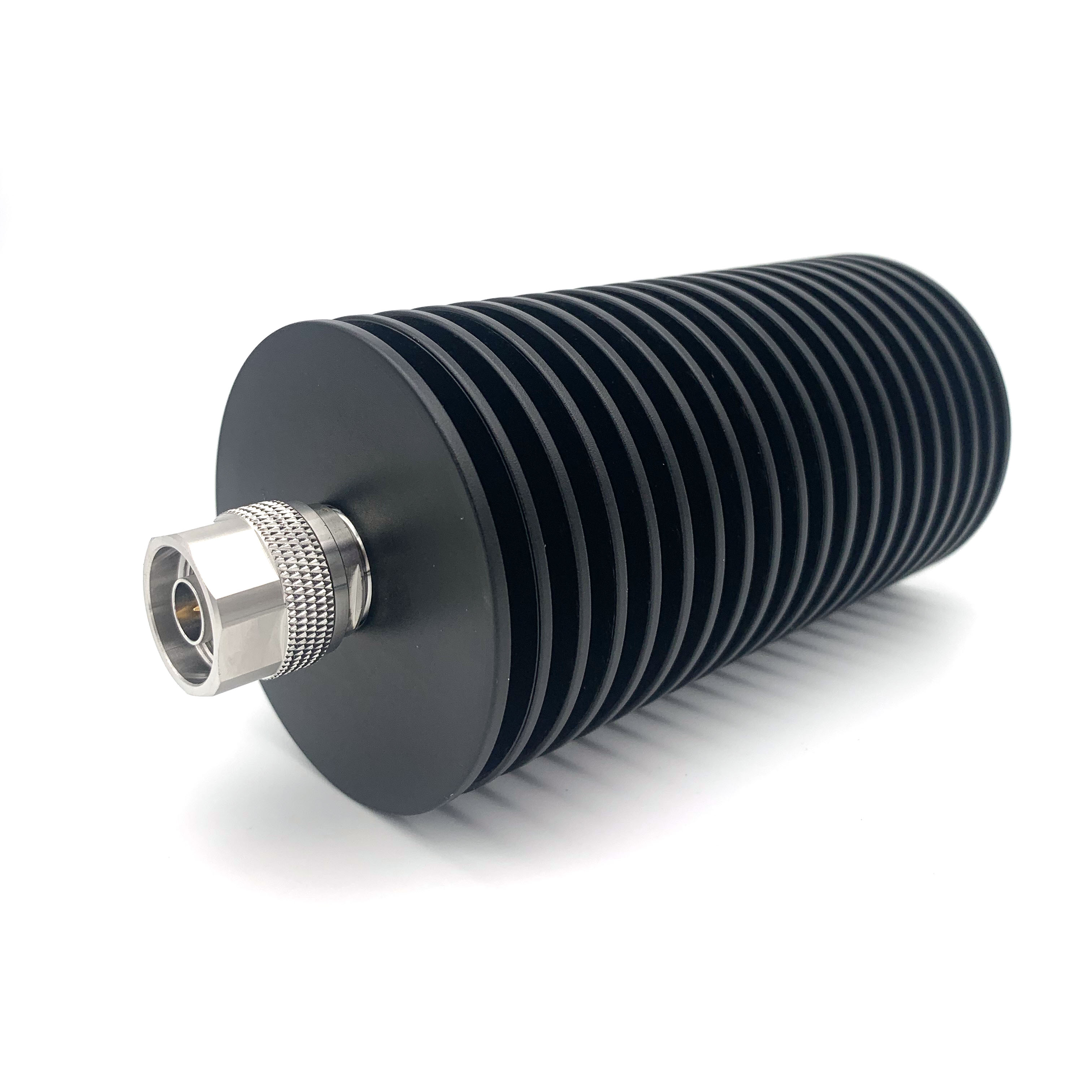

Round Type

Power Handling	Connector	Attenuation	Freq. Range	VSWR Max	P/N*	Size (mm)
100W	SMA	6~60dB	DC~4GHz	1.20	ZSJxx-100RS-4	Φ64x121 Φ64x70
			DC~8GHz	1.25	ZSJxx-100RS-8
			DC~12.4GHz	1.35	ZSJxx-100RS-12.4
			DC~18GHz	1.45	ZSJxx-100RS-18
100W	N	6~60dB	DC~4GHz	1.20	ZSJxx-100RN-4	Φ64x121 Φ64x70
			DC~8GHz	1.25	ZSJxx-100RN-8
			DC~12.4GHz	1.35	ZSJxx-100RN-12.4
			DC~18GHz	1.45	ZSJxx-100RN-18
100W	DIN 7/16	3~30dB	DC~4GHz	1.20	ZSJxx-100RD-4	Φ64x121
100W	DIN 7/16	3~30dB	DC~6GHz	1.25	ZSJxx-100RD-6	Φ64x121

*XX: Attenuation

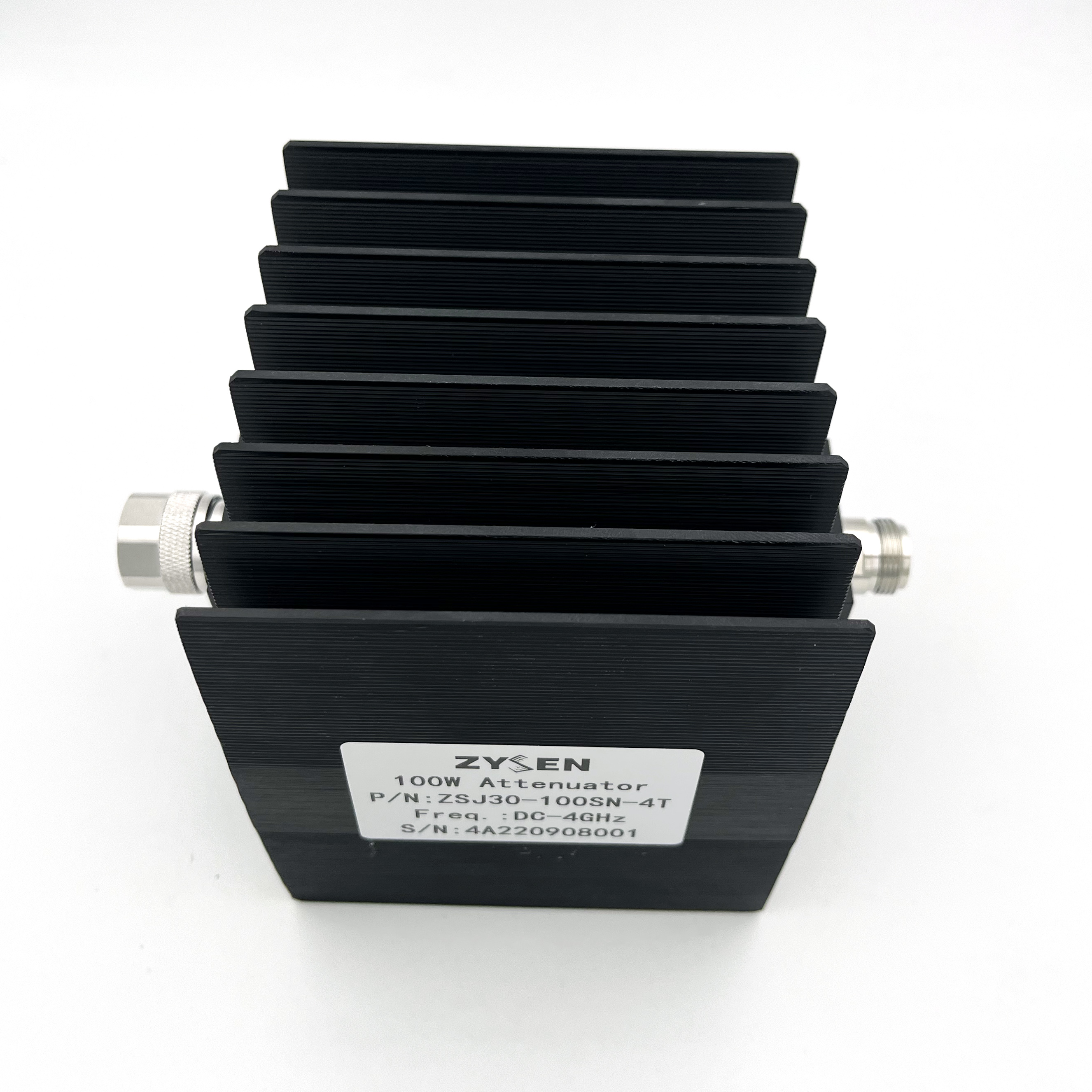

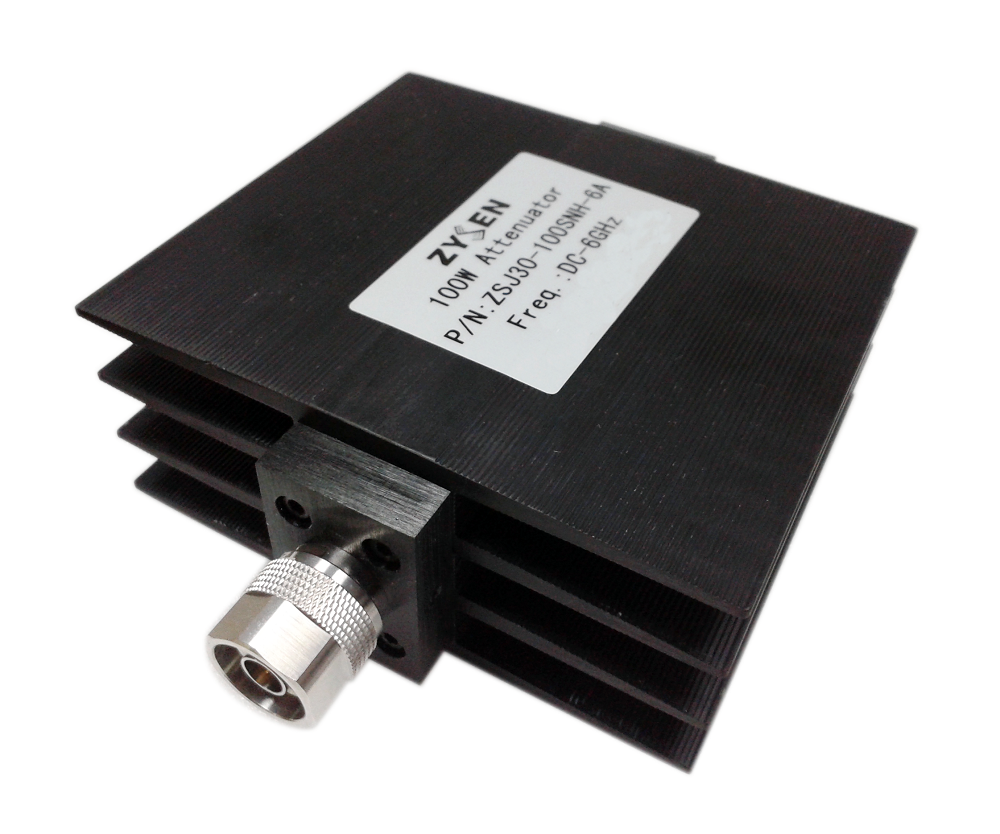

Square Type

Power Handling	Connector	Attenuation	Freq. Range	VSWR Max	P/N*	Size (mm)
100W	SMA	6~60dB	DC~4GHz	1.20	ZSJxx-100SS-4	101x120x50
			DC~8GHz	1.25	ZSJxx-100SS-8
			DC~12.4GHz	1.35	ZSJxx-100SS-12.4
			DC~18GHz	1.45	ZSJxx-100SS-18
100W	N	6~60dB	DC~4GHz	1.20	ZSJxx-100SN-4	64x64x105 101x120x50
			DC~8GHz	1.25	ZSJxx-100SN-8
			DC~12.4GHz	1.35	ZSJxx-100SN-12.4
			DC~18GHz	1.45	ZSJxx-100SN-18
100W	DIN 7/16	3~30dB	DC~4GHz	1.20	ZSJxx-100SD-4	64x64x105 101x120x50
100W	DIN 7/16	3~30dB	DC~6GHz	1.25	ZSJxx-100SD-6	64x64x105 101x120x50

*XX: Attenuation
