ZYSEN, a trusted name in high-performance RF and microwave solutions, is pleased to announce the launch of the 90XF8596F10C, a waveguide high power limiter covering the 8.9 to 9.6 GHz frequency range. Engineered for applications requiring robust receiver protection from high-power microwave signals, this limiter delivers industry-leading performance in a rugged, waveguide package.
The 90XF8596F10C is a high-power waveguide limiter designed to protect sensitive receiver circuits—particularly Low Noise Amplifiers (LNAs)—from excessive, potentially damaging power loads. Operating in the X-band (WR90 waveguide), this limiter is ideal for use in radar front-end protection, electronic warfare (EW) systems, power leveling, and high-frequency instrumentation. Its combination of ultra-low insertion loss, fast recovery time, and high peak power handling allows system designers to safeguard critical components while maintaining superior signal integrity. The unit features a standard WR90 waveguide interface for seamless integration into 50-ohm systems.
✅ High Peak Power Handling (500W Max): Provides robust protection against high-power microwave transients, safeguarding sensitive receiver components from burnout and degradation.
✅ Ultra-Low Insertion Loss (0.8 dB Max): Minimizes signal degradation in the receive path, ensuring optimal system sensitivity and noise figure performance.
✅ Excellent VSWR (1.3:1 Max): Guarantees minimal signal reflection and seamless integration into standard waveguide systems.
✅ Fast Recovery Time (800ns Max): Quickly returns to low-loss state after high-power events, minimizing system dead time and ensuring continuous operation.
✅ Low Flat Leakage Power (10dBm Typ.): Provides effective limiting action, protecting downstream components from excessive power levels even under continuous high-power conditions.
✅ Low Spike Leakage Power (17dBm Max): Suppresses high-power spikes during initial transient events, preventing damage from fast-rising pulses.
✅ Broad Operating Temperature Range (-40 to +70°C): Suitable for deployment in harsh environments, including airborne, ground-based, and shipboard platforms.

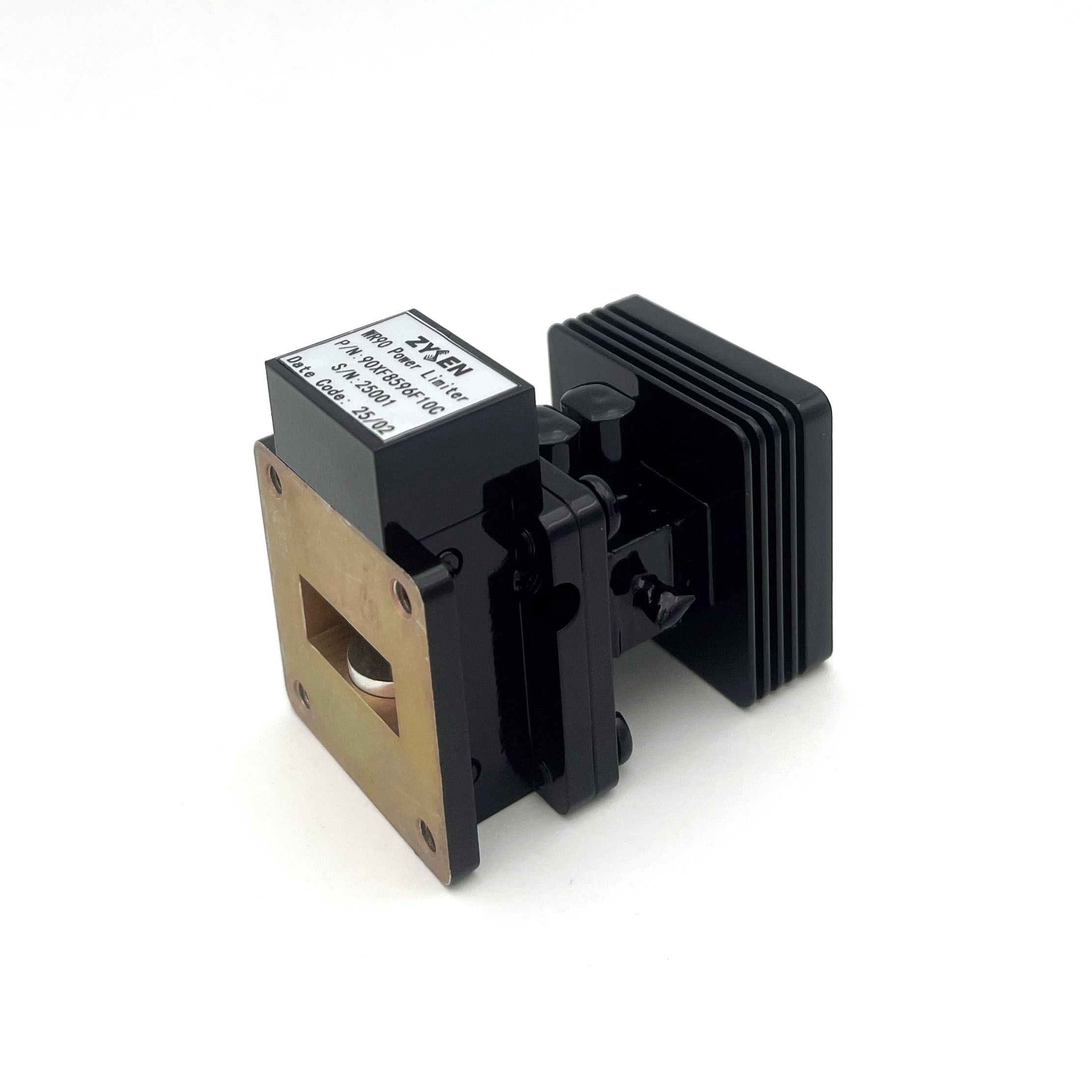

✅ Rugged WR90 Waveguide Package: Features standard WR90 interface with FBP100 (UBR100) flange for easy integration with existing X-band systems.
The 90XF8596F10C is ideally suited for a wide range of high-frequency applications, including:
🔹 Radar Systems: Receiver front-end protection for X-band radar, including weather radar, surveillance radar, and marine radar.
🔹 Electronic Warfare (EW) & Defense: Front-end protection for receiver chains, signal intelligence (SIGINT) systems, and electronic countermeasure equipment.
🔹 Satellite Communications (Satcom): Ground station receivers and telemetry systems operating in X-band.
🔹 Test & Measurement: Protection for spectrum analyzers, signal generators, and scalar/vector network analyzers from unexpected high-power inputs.
🔹 Wireless Backhaul: High-capacity point-to-point microwave links operating in the 8–12 GHz spectrum.
🔹 Research & Development: General-purpose RF protection for university labs, defense research, and aerospace development programs.
ZYSEN specializes in the design, development, and manufacturing of high-performance RF and microwave components, including amplifiers, limiters, filters, frequency converters, and integrated modules. With a commitment to innovation, quality, and customer support, ZYSEN provides reliable solutions for the most demanding aerospace, defense, telecommunications, and test instrumentation applications.
The 90XF8596F10C Waveguide High Power Limiter is available for order now. For detailed technical specifications, evaluation units, or volume pricing, please visit www.zysentech.com or contact our sales team.
