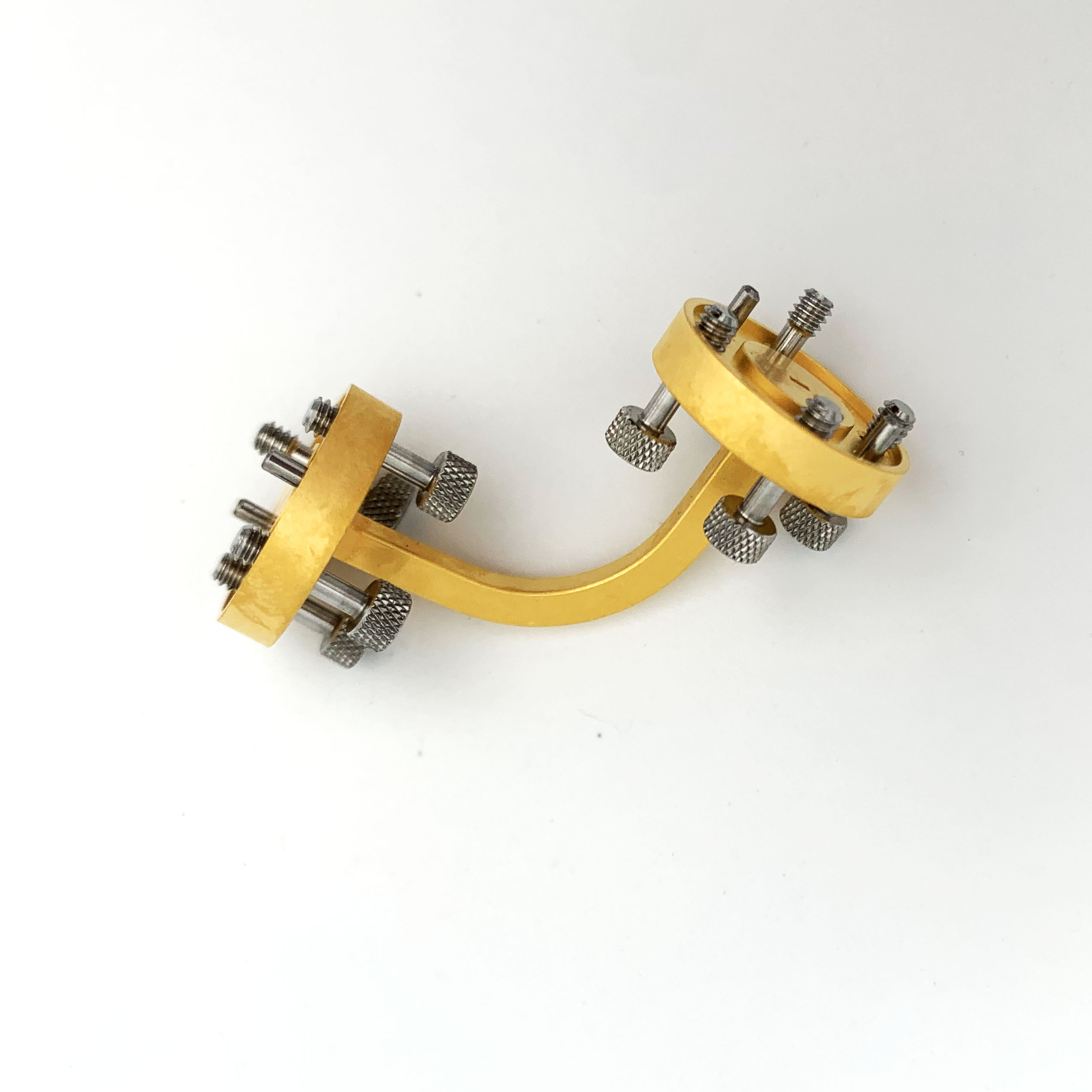

Waveguide Bend

Bend waveguide include E plane bend and H-plane bend, and bend type include radius and miter bend(30°, 45°, 60°, 90°). Miter bend main used to short arm length need, big size waveguide and narrow frequency, small power handling applications. Radius bend is more commonly used, standard bend angle is 90°, other angle can be customized according to customer’s requirement, Zysen provide waveguide bend from WR975 to WR3, Flange is compatible with EIA and IEC standards. Material is Aluminum(6061) and Brass, Surface treatment include silver plating, gold plating, nickel plating, passivization, conductive oxidation etc.arm length, flange, material, surface treatment all are custom design.

WG Size	90° E Bend P/N	90° H Bend P/N	Freq. Range (GHz)	VSWR	Arm length AxB(mm)	Material
WR430	430EB-250x250-A-FF	430HB-250x250-A-FF	1.70-2.60	1.15	250x250	Al
WR340	340EB-180x180-A-FF	340HB-180x180-A-FF	2.20-3.30	1.15	180x180	Al
WR284	284EB-160x160-A-FF	284HB-160x160-A-FF	2.60-3.95	1.15	160x160	Al
WR229	229EB-120x120-A-FF	229HB-120x120-A-FF	3.30-4.90	1.15	120x120	Al
WR187	187EB-80x80-A-FF	187HB-80x80-A-FF	3.95-5.85	1.15	80x80	Al
WR159	159EB-80-80-A-FF	159HB-80-80-A-FF	4.90-7.05	1.15	80x80	Al
WR137	137EB-80x80-A-FF	137HB-80x80-A-FF	5.85-8.20	1.15	80x80	Al
WR112	112EB-60x60-B-FF	112HB-60x60-B-FF	7.05-10.0	1.15	60x60	Al
WR90	90EB-55x55-B-FF	90HB-55x55-B-FF	8.20-12.4	1.15	55x55	Al/Cu
WR75	75EB-50x50-B-FF	75HB-50x50-B-FF	10.0-15.0	1.15	50x50	Al/Cu
WR62	62EB-40x40-B-FF	62HB-40x40-B-FF	12.4-18.0	1.15	40x40	Al/Cu
WR51	51EB-35x35-B-FF	51HB-35x35-B-FF	15.0-22.0	1.15	35x35	Al/Cu
WR42	42EB-35x35-B-FF	42HB-35x35-B-FF	18.0-26.5	1.15	35x35	Al/Cu
WR34	34EB-35x35-B-FF	34HB-35x35-B-FF	22.0-33.0	1.15	35x35	Al/Cu
WR28	28EB-30x30-B-FF	28HB-30x30-B-FF	26.5-40.0	1.15	30x30	Al/Cu
WR22	22EB-20x20-B-FF	22HB-20x20-B-FF	33.0-50.0	1.15	20x20	Cu
WR19	19EB-20x20-B-FF	19HB-20x20-B-FF	40.0-60.0	1.15	20x20	Cu
WR15	15EB-20x20-B-FF	15HB-20x20-B-FF	50.0-75.0	1.15	20x20	Cu
WR12	12EB-20x20-B-FF	12HB-20x20-B-FF	60.0-90.0	1.15	20x20	Cu
WR10	10EB-20x20-B-FF	10HB-20x20-B-FF	75.0-110.0	1.15	20x20	Cu
WR8	8EB-20x20-B-FF	8HB-20x20-B-FF	92.2-140	1.15	20x20	Cu
WR7	7EB-20x20-B-FF	7HB-20x20-B-FF	113-173	1.15	20x20	Cu
WR5	5EB-20x20-B-FF	5HB-20x20-B-FF	145-225.4	1.15	20x20	Cu
WR4	4EB-20x20-B-FF	4HB-20x20-B-FF	172-261	1.15	20x20	Cu
WR3	3EB-20x20-B-FF	3HB-20x20-B-FF	217-330	1.15	20x20	Cu
