5W Fixed Attenuaor

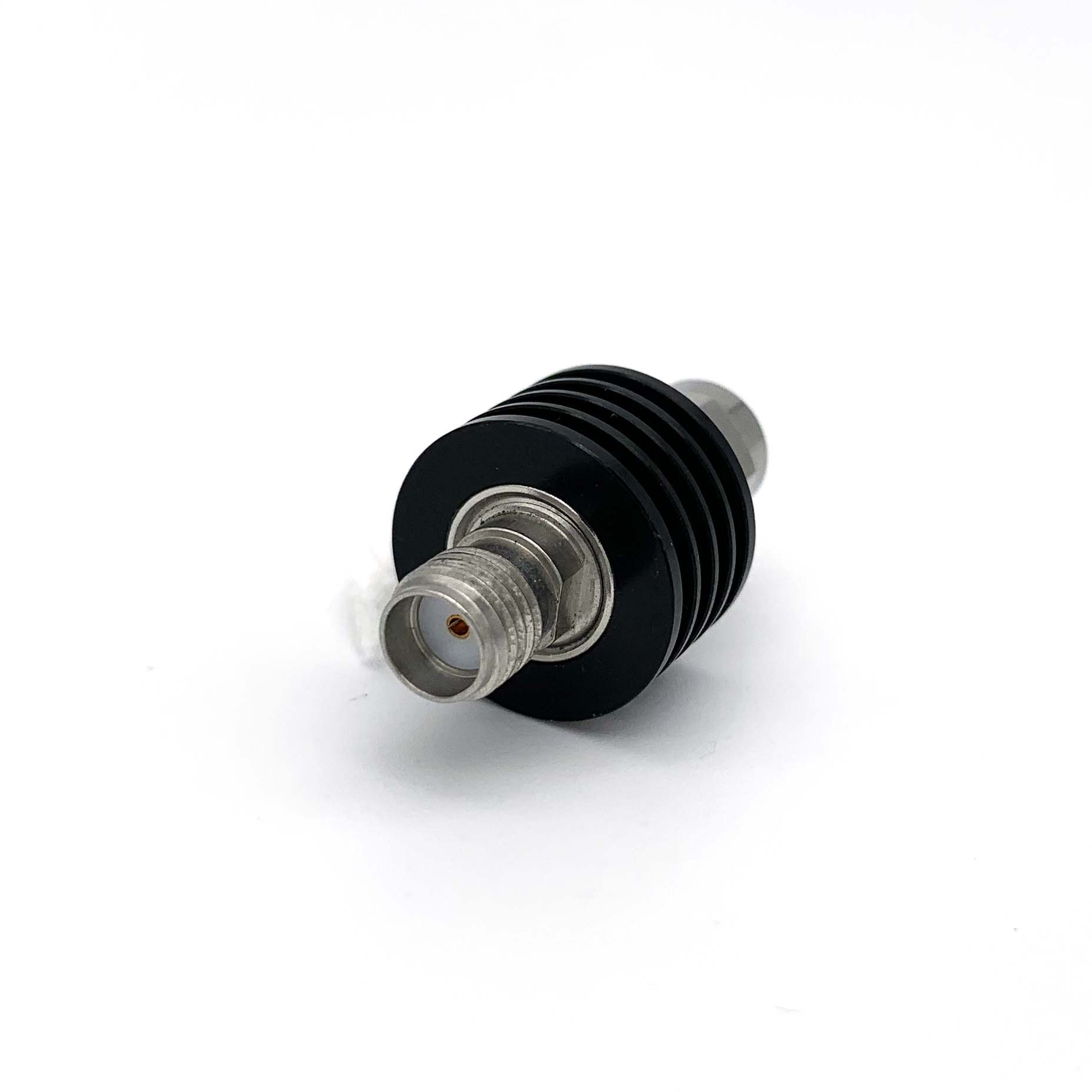

Zysen offers DC–40GHz 5W fixed attenuators with an attenuation range of 0 to 80 dB. Bidirectional,Available connector options include SMA, N, 2.92 mm, as well as chip and flange types. Excellent VSWR performance is guaranteed, with customized VSWR from 1.1 to 1.4 depending on your application. Lead time is as quick as around 1 week. Contact us with your requirements.

SMA Connector

P/N	Freq. Range (GHz)	Power Handling (W)	Attenuation (dB)	VSWR Max	Connector	Size (mm)
ZSJxx-5RS-4	DC-4	5	1~60	1.20	SMA M/F	Φ19x9
ZSJxx-5RS-8	DC-8	5	1~60	1.25	SMA M/F	Φ19x9
ZSJxx-5RS-12	DC-12	5	1~60	1.25	SMA M/F	Φ19x9
ZSJxx-5RS-18	DC-18	5	1~60	1.30	SMA M/F	Φ19x9

N Connector

P/N	Freq. Range (GHz)	Power Handling (W)	Attenuation (dB)	VSWR Max	Connector	Size (mm)
ZSJxx-5RN-4	DC-4	5	1~60	1.20	N M/F	Φ20x30
ZSJxx-5RN-8	DC-8	5	1~60	1.25	N M/F	Φ20x30
ZSJxx-5RN-12	DC-12	5	1~60	1.25	N M/F	Φ20x30
ZSJxx-5RN-18	DC-18	5	1~60	1.30	N M/F	Φ20x30

2.92mm Connector

P/N

Freq.
Range
(GHz)

Power
Handling
(W)

Attenuation
(dB)

VSWR
Max

Connector

Size

(mm)

ZSJxx-5RS-26.5

DC-26.5

1~60

1.15~1.30

SMA M/F

Φ19x9

ZSJXX-5RKA-40

DC-40

1~80

1.15~1.40

2.92mm M/F

Φ28x14.4
