2W Fixed Attenuator

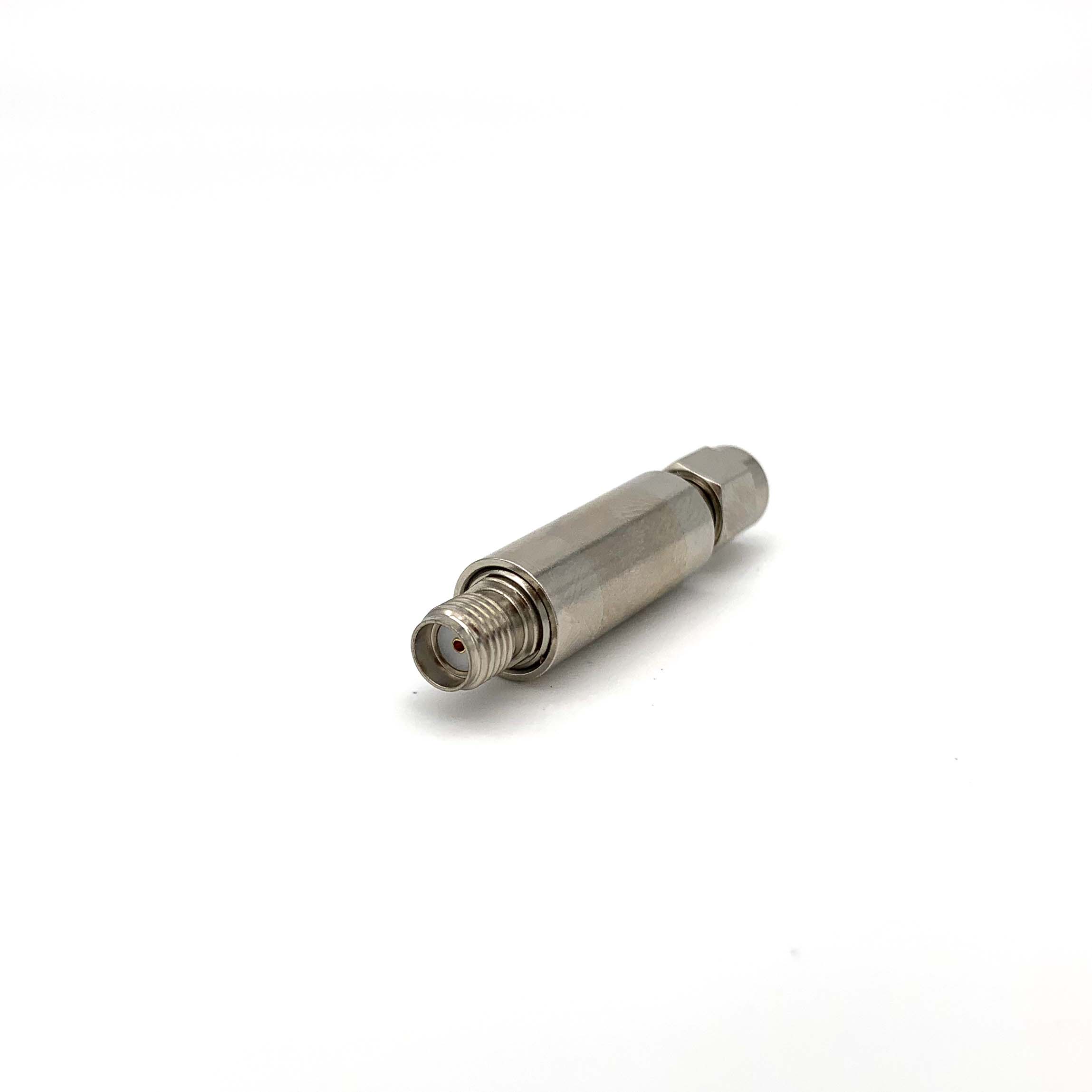

Zysen offers DC–67 GHz 2W fixed attenuators with an attenuation range of 0 to 80 dB. Bidirectional, Available connector options include SMA, N, 2.92 mm, 1.85 mm, as well as chip and flange types. Excellent VSWR performance is guaranteed, with customized VSWR from 1.1 to 1.4 depending on your application. Lead time is as quick as around 1 week. Contact us with your requirements.

SMA Connector

P/N	Freq. Range (GHz)	Power Handling (W)	Attenuation (dB)	VSWR Max	Connector	Size (mm)
ZSJxx-2RS-4	DC-4	2	1~60	1.15~1.20	SMA M/F	L:24~27
ZSJxx-2RS-8	DC-8	2	1~60	1.20~1.25	SMA M/F	L:24~27
ZSJxx-2RS-12	DC-12	2	1~60	1.20~1.25	SMA M/F	L:24~27
ZSJxx-2RS-18	DC-18	2	1~60	1.25~1.30	SMA M/F	L:24~27
ZSJxx-2RS-26.5	DC-26.5	2	1~60	1.30~1.35	SMA M/F	L:24~27

N Connector

P/N	Freq. Range (GHz)	Power Handling (W)	Attenuation (dB)	VSWR Max	Connector	Size (mm)
ZSJxx-2RN-4	DC-4	2	1~60	1.20	N M/F	Φ16.5x45/48
ZSJxx-2RN-8	DC-8	2	1~60	1.25	N M/F	Φ16.5x45/48
ZSJxx-2RN-12	DC-12	2	1~60	1.35	N M/F	Φ16.5x45/48
ZSJxx-2RN-18	DC-18	2	1~60	1.45	N M/F	Φ16.5x45/48

2.92mm Connector

P/N

Freq.
Range
(GHz)

Power
Handling
(W)

Attenuation
(dB)

VSWR
Max

Connector

Size

(mm)

ZSJXX-2RKA-40

DC-40

1~80

1.12~1.45

2.92mm

Φ9x15.2

1.85mm Connector

P/N

Freq.
Range
(GHz)

Power
Handling
(W)

Attenuation
(dB)

VSWR
Max

Connector

Size

(mm)

ZSJXX-2RVA-67

DC-67

1~40

1.14~1.45

1.85mm

Φ9x16
