LC Band Pass Filter

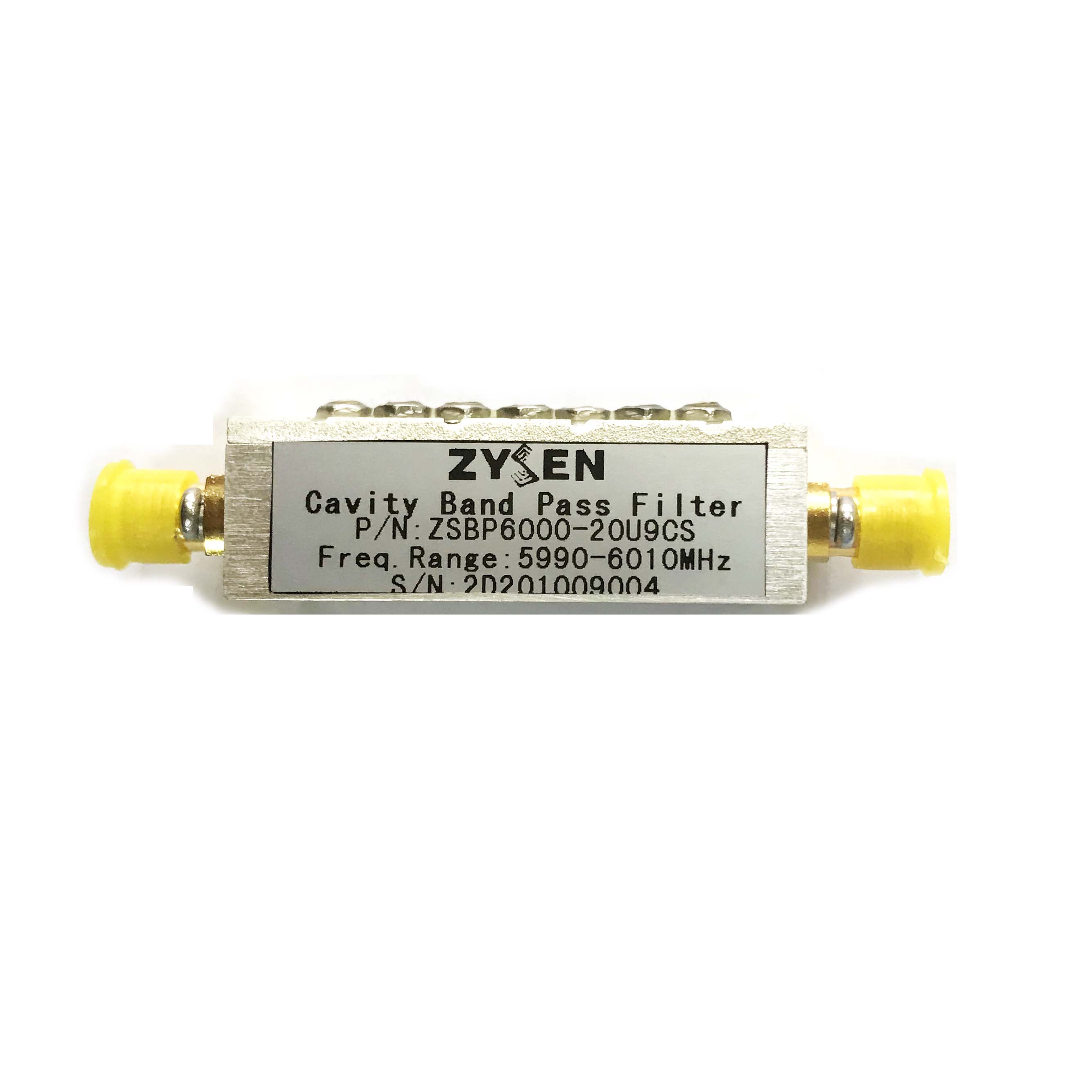

Zysen’s LC Band Pass Filter & Low Pass Filter, 3dB BW from 3% to 40%; Band Pass Filters, Cover Frequency Range 0.5MHz to 4GHz; Low Pass Filters, Cover Frequency Range 0.5MHz to 6GHz; Connector SMA, N, or Drop-in are available, Power handling from 0.5W to 2000Watts. Customized frequency and optimized specifications available. Contact us with your requirement: Sales@zysentech.com.

P/N	1dB Pass Band (MHz)	I.L. at F0 (dB) Max	Stop Band 1 (dB Min @ MHz)	Stop Band 2 (dB Min @ MHz)	VSWR Max	Connector	Size LxWxH (mm)
ZSBP10-2LS	9-11	1.0	50 @ 1	-	1.5	SMA-F	40.4x19.0x10.0
ZSBP80-100LS	30-130	0.5	-	40 @ 150	1.5	SMA-F	50.9x9.5x9.5
ZSBP200-100LS	150-250	1.1	40 @ 125	50 @ 300	1.8	SMA-F	50.9x9.5x9.5
ZSBP325-150LS	250-400	0.9	65 @ 200	65 @ 500	1.5	SMA-F	40.4x12.0x10.0
ZSBP400-80LS	360-440	2.5	40 @ 300	40 @ 500	1.5	SMA-F	50.9x9.5x9.5
ZSBP450-200LS	350-550	1.0	80 @ 200	80 @ 700	1.5	SMA-F	40.4x12.0x10.0
ZSBP550-300LS	400-700	0.9	45 @ 350	45 @ 800	1.5	SMA-F	40.4x12.0x10.0
ZSBP750-500LS	500-1000	1.0	60 @ 300	60 @ 1200	1.5	SMA-F	40.4x12.0x10.0
ZSBP900-100LS	850-950	2.4	40 @ 800	40 @ 1000	1.5	SMA-F	40.4X9.5X9.5
ZSBP1300-200LS	1200-1400	2.5	60 @ 1000	60 @ 1600	1.5	SMA-F	40.4x12.0x10.0
ZSBP1500-1000LS	1000-2000	0.7	75 @ 500	70 @ 2500	1.5	SMA-F	40.4x12.0x10.0
ZSBP2100-200LS	2000-2200	1.8	75 @ 1700	75 @ 2500	1.5	SMA-F	50.9x9.5x9.5
ZSBP2500-200LS	2400-2600	3.0	80 @ 2200	80 @ 2800	1.5	SMA-F	50.9X9.5X9.5
ZSBP2500-2000LS	1500-3500	1.25	30 @ 1250	20 @ 3750	1.5	SMA-F	50.9X9.5X9.5
ZSBP2800-200LS	2700-2900	3.2	35 @ 2600	35 @ 3000	1.5	SMA-F	50.9X9.5X9.5
ZSBP4095-680LS	3755-4435	2.0	80 @ 2200	40 @ 5000	1.5	SMA-F	37.0X12.0X7.0
ZSBP4925-150LS	4850-5000	4.0	40 @ 4700	40 @ 5150	1.5	SMA-F	40.4x12.0x10.0
ZSBP5000-110LS	4945-5055	6.0	80@ 4700	80 @ 5300	1.5	SMA-F	50.9X9.5X9.5
