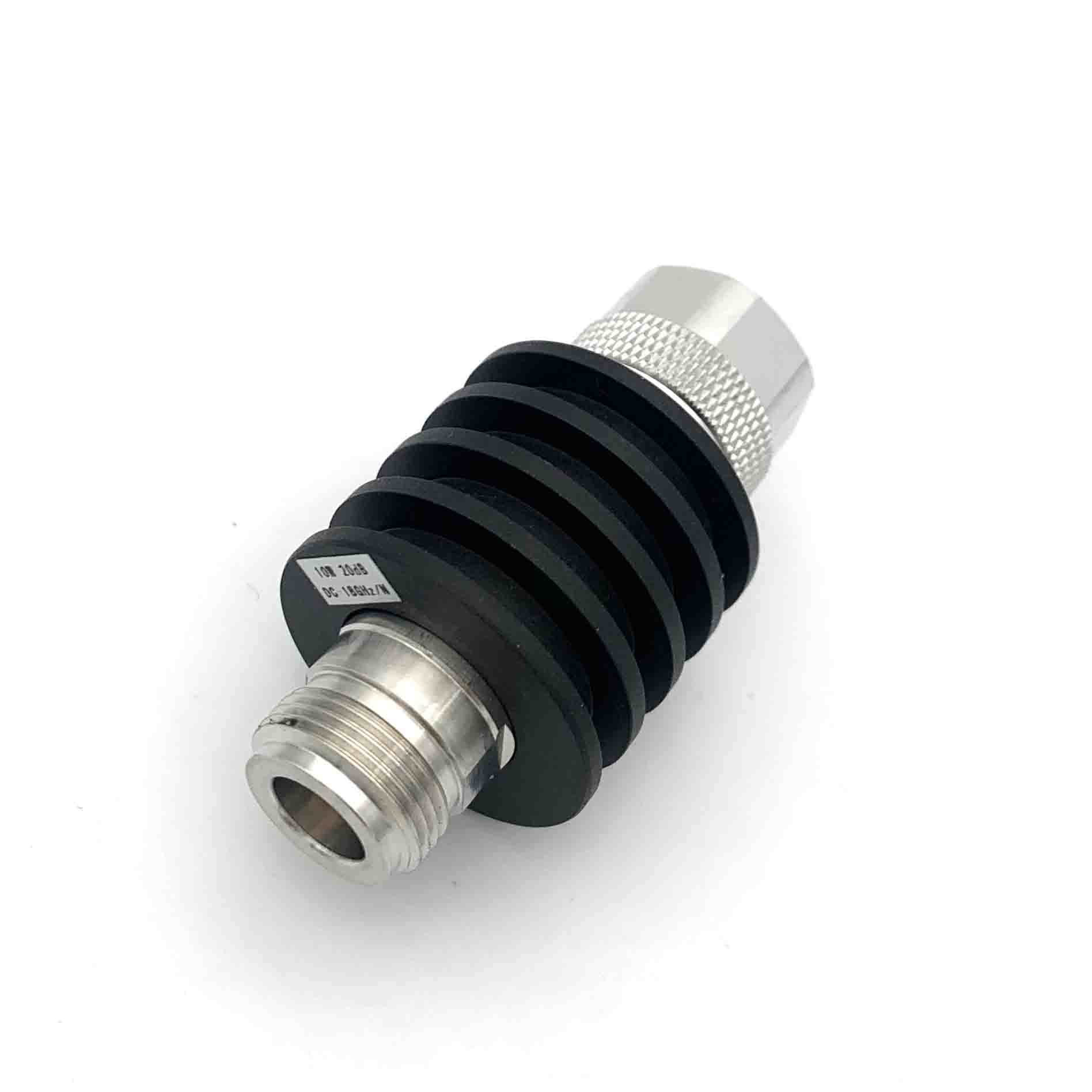

10W Fixed Attenuator

Zysen offers DC–40GHz 2W fixed attenuators with an attenuation range of 0 to 80 dB. Bidirectional, Available connector options include SMA, N, 2.92 mm, as well as chip and flange types. Excellent VSWR performance is guaranteed, with customized VSWR from 1.1 to 1.4 depending on your application. Lead time is as quick as around 1 week. Contact us with your requirements.

P/N*	Freq. Range (GHz)	Power Handling (W)	Attenuation (dB)	VSWR Max	Connector	Size (mm)
ZSJxx-10RS-4	DC-4	10	1~60	1.20	SMA M/F	Φ15.8x28
ZSJxx-10RS-8	DC-8	10	1~60	1.25	SMA M/F	Φ15.8x28
ZSJxx-10RS-12	DC-12	10	1~60	1.35	SMA M/F	Φ15.8x28
ZSJxx-10RS-18	DC-18	10	1~60	1.35	SMA M/F	Φ15.8x28
ZSJxx-10RS-26.5	DC-26.5	10	1~60	1.35	SMA M/F	Φ15.8x28
ZSJxx-10RN-4	DC-4	10	1~60	1.20	N M/F	Φ30x26
ZSJxx-10RN-8	DC-8	10	1~60	1.25	N M/F	Φ30x26
ZSJxx-10RN-12	DC-12	10	1~60	1.35	N M/F	Φ30x26
ZSJxx-10RN-18	DC-18	10	1~60	1.45	N M/F	Φ30x26
ZSJxx-10RF-4	DC-4	10	1~50	1.20	7/16 M/F	Φ38x49.5
ZSJxx-10RF-6	DC-6	10	1~50	1.25	7/16 M/F	Φ38x49.5
ZSJXX-10RKA-40	DC-40	10	1~80	1.40	2.92mm M/F	Φ34.8x14.4

*XX: Attenuation
