Waveguide High Power Load (100~5KW)

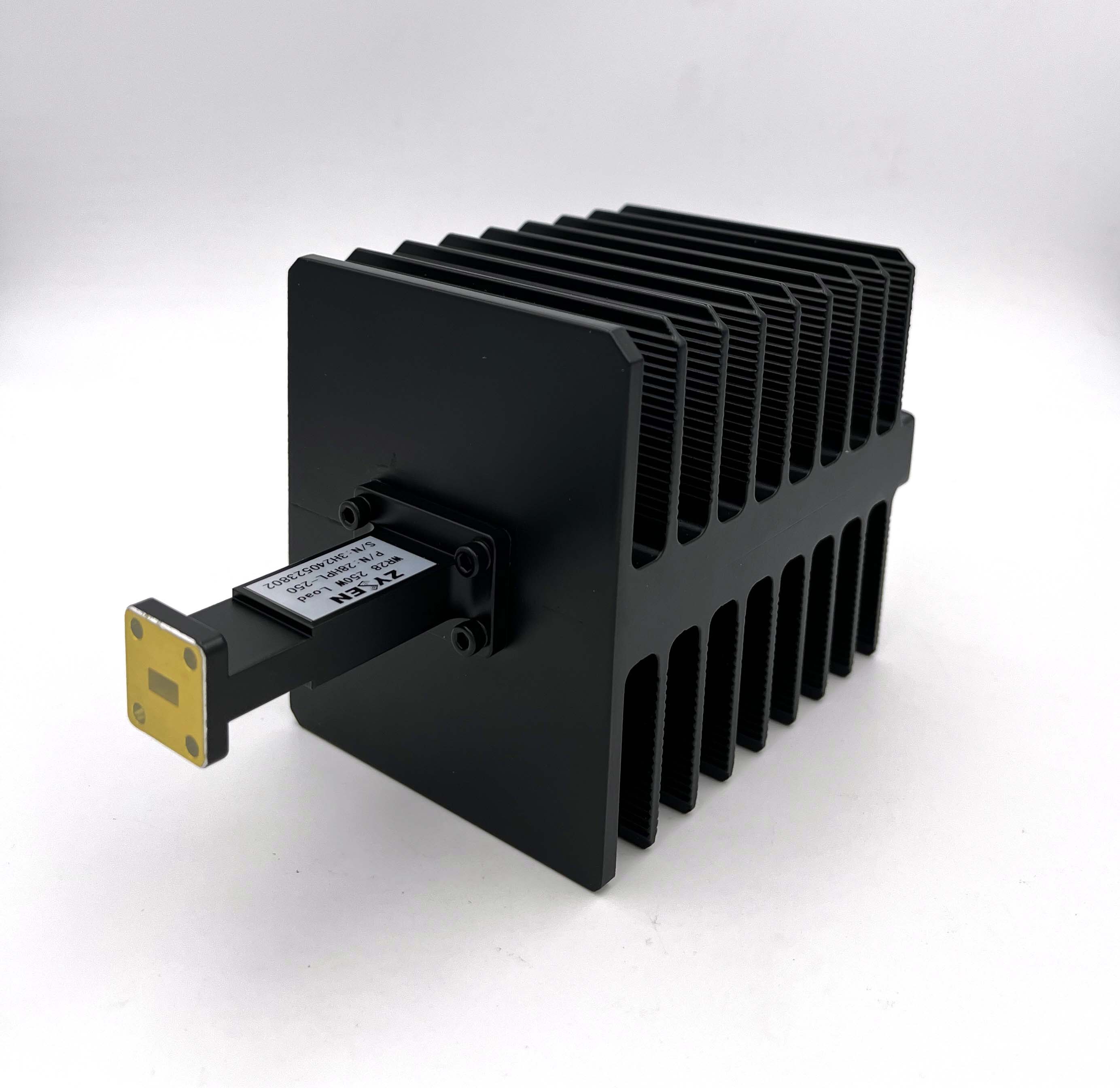

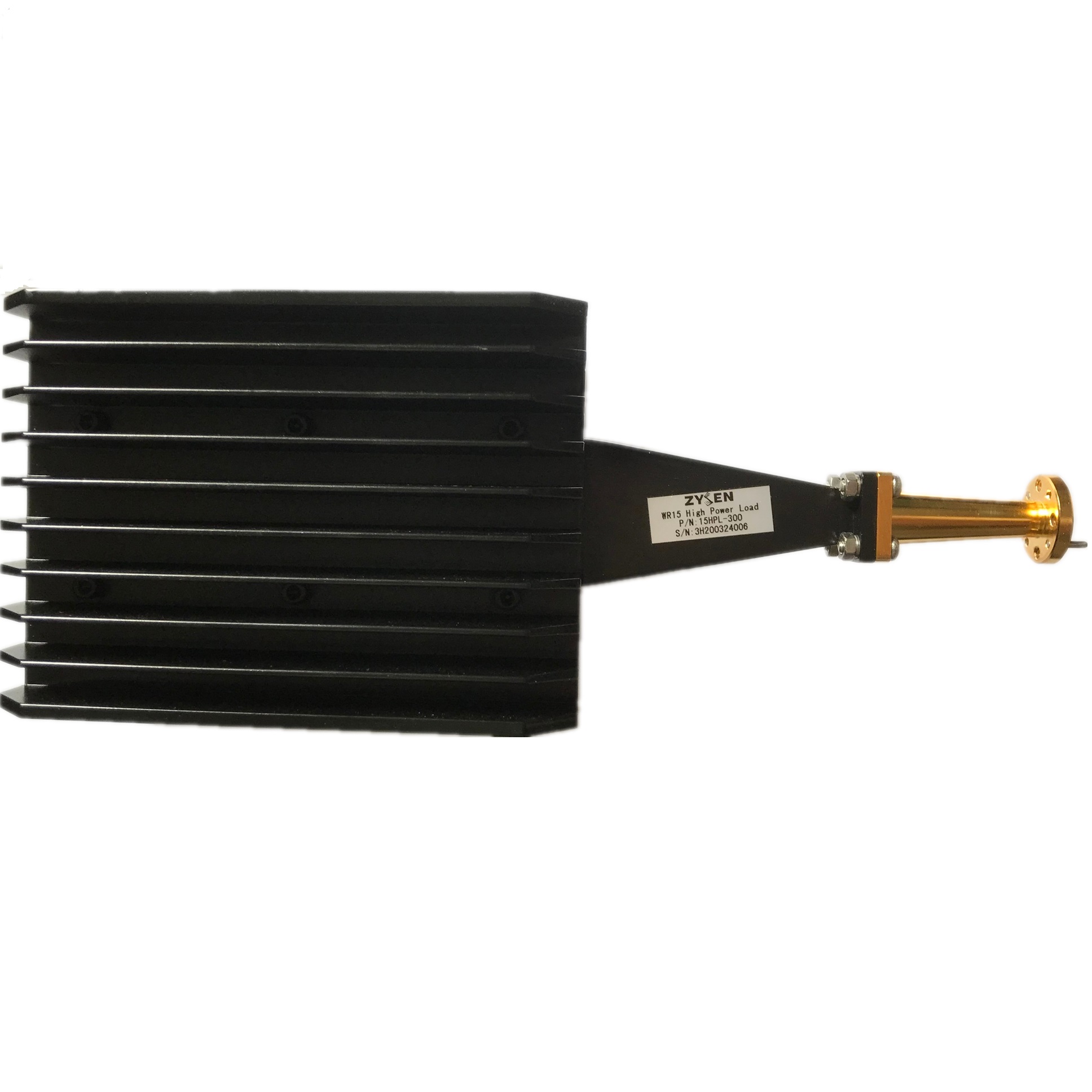

Zysen’s Waveguide High Power Load, from WR28 to WR975, from 100 to 5000W. VSWR 1.15Max. Some parts are in stock, standard lead time 2 to 3weeks. Custom power and optimized specifications are available. Contact us with your requirement. Standard black paint, others colour is available. flange is compatible with EIA Standard and IEC Standard, check details with us.

P/N	WG Size	Frequency Range (GHz)	Power Handling* (W)	VSWR	Flange Type
975HPL-XX	WR975	0.75-1.12	200-5000	1.15	UDR
770HPL-XX	WR770	0.96-1.45	200-5000	1.15	UDR
650HPL-XX	WR650	1.12-1.70	200-5000	1.15	UDR
510HPL-XX	WR510	1.45-2.20	150-5000	1.15	UDR
430HPL-XX	WR430	1.70-2.60	150-5000	1.15	UDR
340HPL-XX	WR340	2.20-3.30	150-5000	1.15	UDR
284HPL-XX	WR284	2.60-3.95	100-4000	1.15	UDR
229HPL-XX	WR229	3.30-4.90	100-4000	1.15	UDR
187HPL-XX	WR187	3.95-5.85	100-4000	1.15	UDR
159HPL-XX	WR159	4.90-7.05	100-4000	1.15	UDR
137HPL-XX	WR137	5.85-8.20	100-4000	1.15	UDR
112HPL-XX	WR112	7.05-10.0	100-3000	1.15	UDR/UBR
90HPL-XX	WR90	8.20-12.4	100-3000	1.15	UBR
75HPL-XX	WR75	10.0-15.0	100-3000	1.15	UBR
62HPL-XX	WR62	12.4-18.0	100-2000	1.15	UBR
51HPL-XX	WR51	15.0-22.0	100-2000	1.15	UBR
42HPL-XX	WR42	18.0-26.5	100-2000	1.15	UBR
34HPL-XX	WR34	22.0-33.0	100-2000	1.15	UBR
28HPL-XX	WR28	26.5-40.0	50-2000	1.15	UBR
22HPL-XX	WR22	33.0-50.0	50-2000	1.20	PAR
19HPL-XX	WR19	40.0-60.0	50-2000	1.20	PAR
