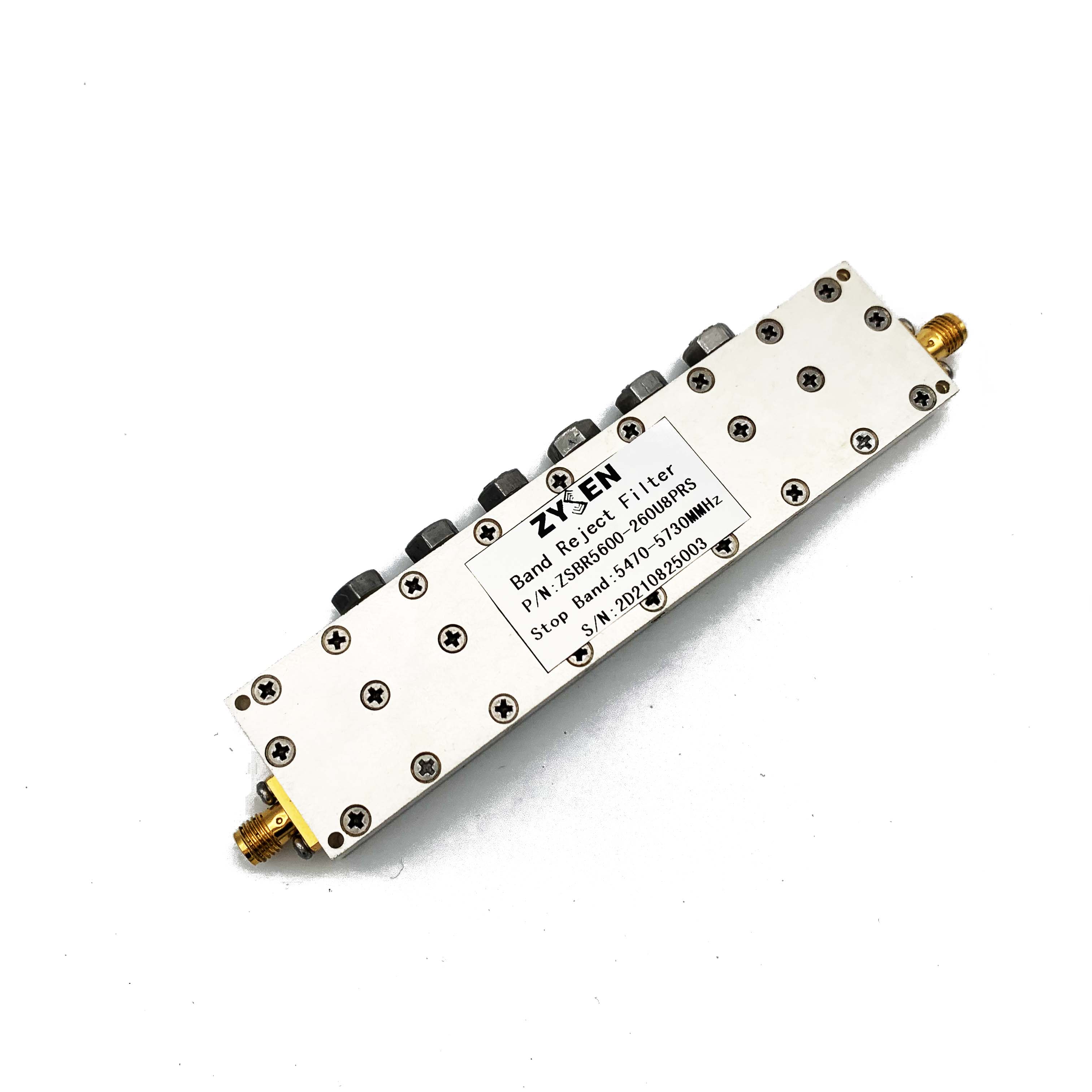

Cavity Band Stop Filter

Zysen’s Cavity Band Pass Filter & Band Stop Filter, High “Q” design for Narrow BW, Low insertion loss and High rejection. From 200MHz to 40GHz, Connector SMA, N, 2 92mm or Drop-in are available. Power handling from 0.5 to 2000Watts. Customized frequency and optimized specifications are available, Contact us with your requirement.

P/N	Stop Band (MHz)	Rejection (dB) Min	Pass Band 1 (MHz)	Pass Band 2 (MHz)	I.L. (dB) Max	Connector	Size LxWxH (mm)
ZSBR668-8U5CN	662-670	45	DC-625	680-3000	1.3	N-F	194×154×18
ZSBR868-10U5CS	858-878	25	DC-838	898-2500	1.5	SMA-F	121×121×14
ZSBR912.5-95U5CS	865-960	45	DC-800	1025-1500	1.5	SMA-F	147×104×14
ZSBR1862.5-115U5CS	1805-1920	40	DC-1592.5	2132.5-3725	1.0	SMA-F	106×57×13
ZSBR2441.75-83.5U7CS	2400-2483.5	40	DC-2345	2538-6000	1.5	SMA-F	122X50X13
ZSBR3500-300U7CS	3350-3650	65	DC-3000	4000-7000	1.0	SMA-F	88×35×12
ZSBR4445-90U5CS	4400-4490	55	4000-4200	5000-12000	1.2	SMA-F	90×29×13
ZSBR5007-P4CS	5007	40	4800-4946	5053-5200	1.5	SMA-F	70x32x13
ZSBR5787.5-105U7CS	5735-5840	45	4000-5600	5940-6100	3	SMA-F	103x30x13
ZSBR8450-15U3CS	8442.5-8457.5	30	7500-8300	8600-9500	1.5	SMA-F	34×19×9
ZSBR10000-50T5CS	9975-10025	40	7000-9800	10200-13000	1.5	SMA-F	44X20X9
