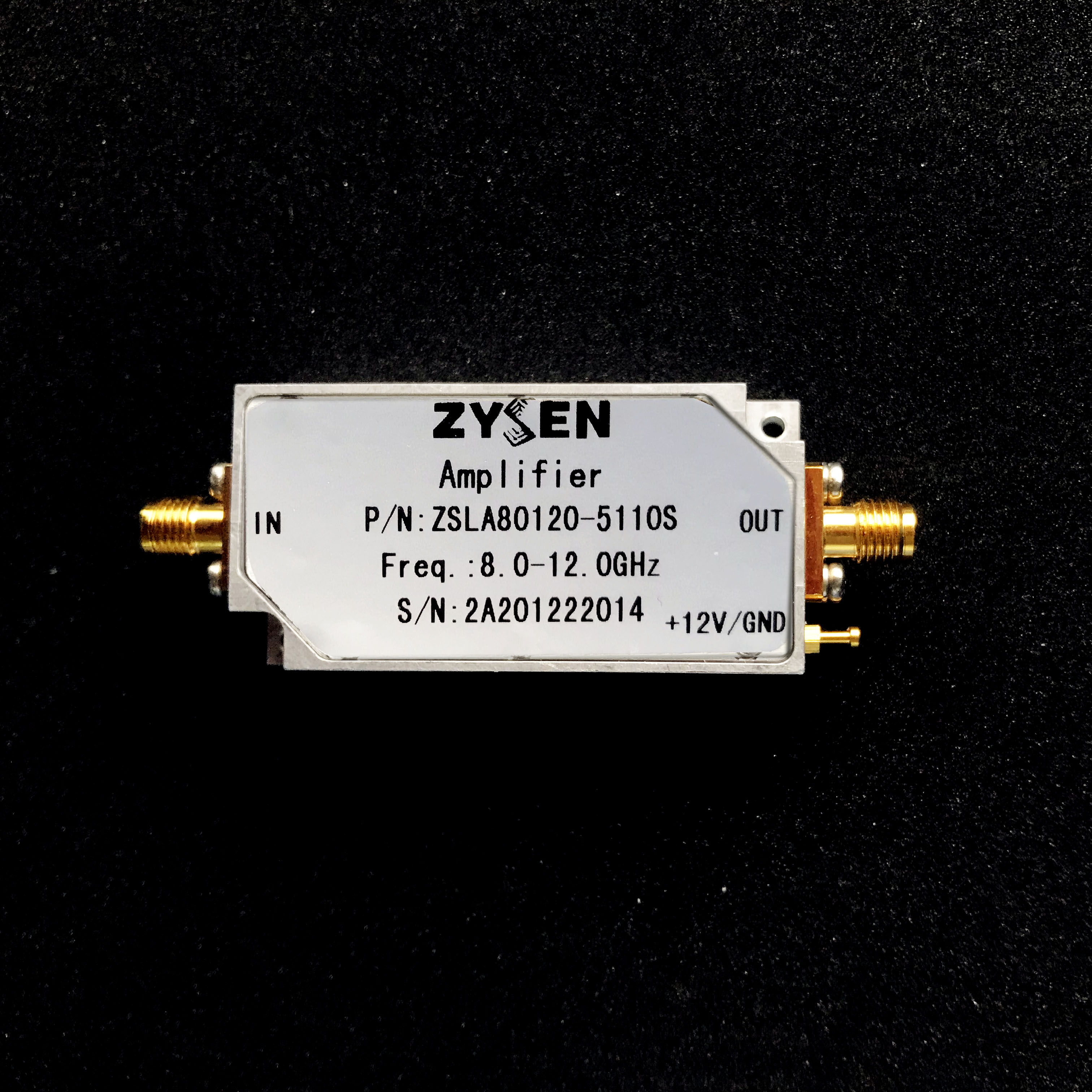

Broadband Low Noise Amplifier

ZYSEN offers a comprehensive family of broadband low noise amplifiers covering 5 MHz to 40 GHz, with gain up to 40 dB and noise figure as low as 0.5 dB typ. – ideal for receiver front-ends, radar, EW, satcom, and test instrumentation.

P/N	Freq. Range (GHz)	Gain(dB)		Flatness (dB )Max	Noise Figure (dB) Max	Pout @ 1dB (dBm)Min	VSWR Typ.	Current +12V(mA) Typ.
P/N	Freq. Range (GHz)	Min	Max	Flatness (dB )Max	Noise Figure (dB) Max	Pout @ 1dB (dBm)Min	VSWR Typ.	Current +12V(mA) Typ.
ZSLA0520-3010	0.5-2	28	32	±1.5	0.6	10	2:1	130
ZSLA1020-3013	1-2	28	32	±1.5	0.5	13	2:1	130
ZSLA2040-3010	2-4	36	40	±2.0	0.6	10	2:1	130
ZSLA1040-3010	1-4	28	30	±2.0	0.9	10	2:1	130
ZSLA4080-3010	4-8	28	32	±1.8	1.1	10	2:1	110
ZSLA2080-3010	2-8	28	32	±1.8	1.3	10	2:1	110
ZSLA80120-3009	8-12	28	32	±1.8	1.3	9	2:1	100
ZSLA80120-3002	8-12	28	32	±1.5	1.0	2	2:1	50
ZSLA60180-1508	6-18	13	16	±1.0	2.2	8	2:1	80
ZSLA80180-3815	8-18	35	40	±2.5	2.2	15	2:1	230
ZSLA60180-3013	6-18	28	32	±2.0	1.8	13	2:1	180
ZSLA20180-3012	2-18	28	32	±2.2	3.5	12	2:1	230
ZSLA10180-3012	1-18	28	32	±2.2	3.7	12	2.2:1	230
ZSLA180265-1520	26.5-40	15	-	±2.0	3.8	20	2:1	300
ZSLA265400-3010K	26.5-40	30	-	±2.0	3.8	10	2:1	300
ZSLA180400-3010K	18-40	30	-	±2.0	3.8	10	2:1	300
ZSLA2060-8015S	2-6	80	-	±3.0	4.5	15	2:!	550
