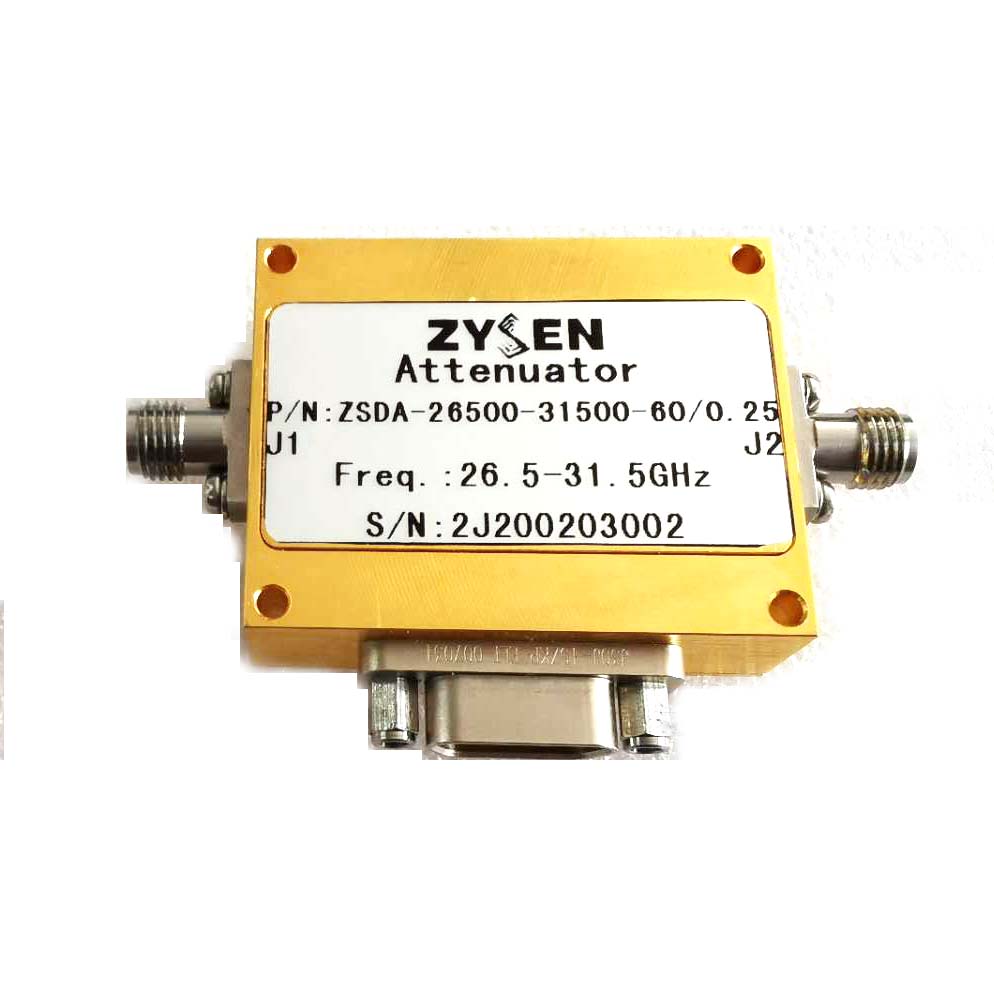

Attenuator Digital Control

Zysen provide Digital Control Attenuator, capable of operating up to a frequency of 40GHz, offers attenuation ranging from 0 to 60dB, with a power handling capacity of 0.2Watts. Tailored frequency bands and optimized specifications are available to meet diverse application requirements. Kindly reach out to us with your specific needs for further assistance.

P/N	Freq. Range (GHz)	Control Bits	Insertion Loss (dB) max	Attenuation* (dB)	Step* (dB)	VSWR max	Power Handling (W)
ZSDA-10-2500-30/0.25	0.01-2.5	7	4.2	30	0.25	2.0	0.2
ZSDA-10-2500-30/0.5	0.01-2.5	6	3.6	30	0.5	2.0	0.2
ZSDA-10-2500-30/1	0.01-2.5	5	3.6	30	1.0	2.0	0.2
ZSDA-10-2500-60/1	0.01-2.5	6	7.0	60	1	1.9	0.2
ZSDA-10-2500-60/0.25	0.01-2.5	8	8.0	60	0.25	2.0	0.2
ZSDA-500-1000-60/1	0.5-1	6	4.2	60	1	1.6	0.2
ZSDA-1000-2000-60/1	1-2	6	4.5	60	1	1.6	0.2
ZSDA-2000-4000-60/1	2-4	6	4.5	60	1	1.6	0.2
ZSDA-4000-8000-60/1	4-8	6	5.8	60	1	1.8	0.2
ZSDA-8000-12000-60/1	8-12	6	7.0	60	1	1.8	0.2
ZSDA-12000-18000-60/1	12-18	6	8.2	60	1	2.0	0.2
ZSDA-12000-18000-60/0.25	12-18	8	9.0	64	0.25	2.0	0.2
ZSDA-500-18000-30/1	0.5-18.0	5	1.8	30	1	2.0	0.2
ZSDA-500-18000-60/1	0.5-18.0	6	8.5	60	1	2.0	0.2
ZSDA-10700-21200-30/0.25	10.7-21.2	7	9.5	30	0.25	2.0	0.2
ZSDA-27500-31500-30/0.25	27.5-31.5	7	10.5	30	0.25	2.0	0.2
ZSDA-18000-40000-60/1	18.0-40.0	6	15.5	60	1	2.5	0.2
ZSDA-100-40000-30/1	0.1-40.0	5	9.0	30	1	2.5	0.2
