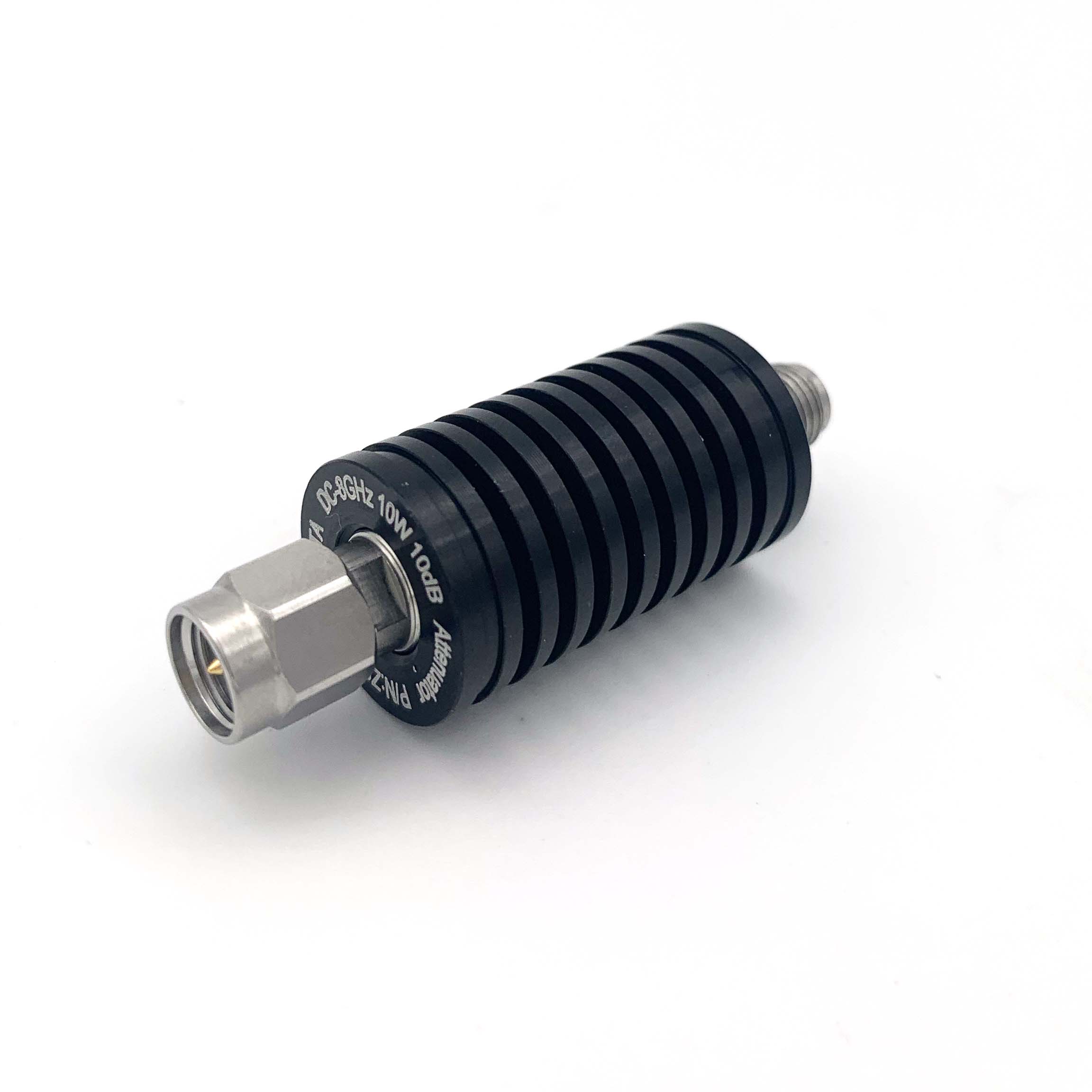

10W Fixed Attenuator

Zysen provide DC-67GHz Fixed Attenuator，Power handling from 0.5 to 2000watts, attenuation range 0 to 80dB, connector SMA,N,2.92mm or chip, flange are available. Good VSWR, different customized VSWR 1.1 to 1.4 available depend on your application, quick lead time 1week around. Contact us with your requirement.

P/N*	Freq. Range (GHz)	Power Handling (W)	Attenuation (dB)	VSWR Max	Connector	Size (mm)
ZSJxx-10RS-4	DC-4	10	1~60	1.20	SMA M/F	Φ15.8x28
ZSJxx-10RS-8	DC-8	10	1~60	1.25	SMA M/F	Φ15.8x28
ZSJxx-10RS-12	DC-12	10	1~60	1.35	SMA M/F	Φ15.8x28
ZSJxx-10RS-18	DC-18	10	1~60	1.35	SMA M/F	Φ15.8x28
ZSJxx-10RS-26.5	DC-26.5	10	1~60	1.35	SMA M/F	Φ15.8x28
ZSJxx-10RN-4	DC-4	10	1~60	1.20	N M/F	Φ30x26
ZSJxx-10RN-8	DC-8	10	1~60	1.25	N M/F	Φ30x26
ZSJxx-10RN-12	DC-12	10	1~60	1.35	N M/F	Φ30x26
ZSJxx-10RN-18	DC-18	10	1~60	1.45	N M/F	Φ30x26
ZSJxx-10RF-4	DC-4	10	1~50	1.20	7/16 M/F	Φ38x49.5
ZSJxx-10RF-6	DC-6	10	1~50	1.25	7/16 M/F	Φ38x49.5
ZSJXX-10RKA-40	DC-40	10	1~80	1.40	2.92mm M/F	Φ34.8x14.4

*XX: Attenuation
