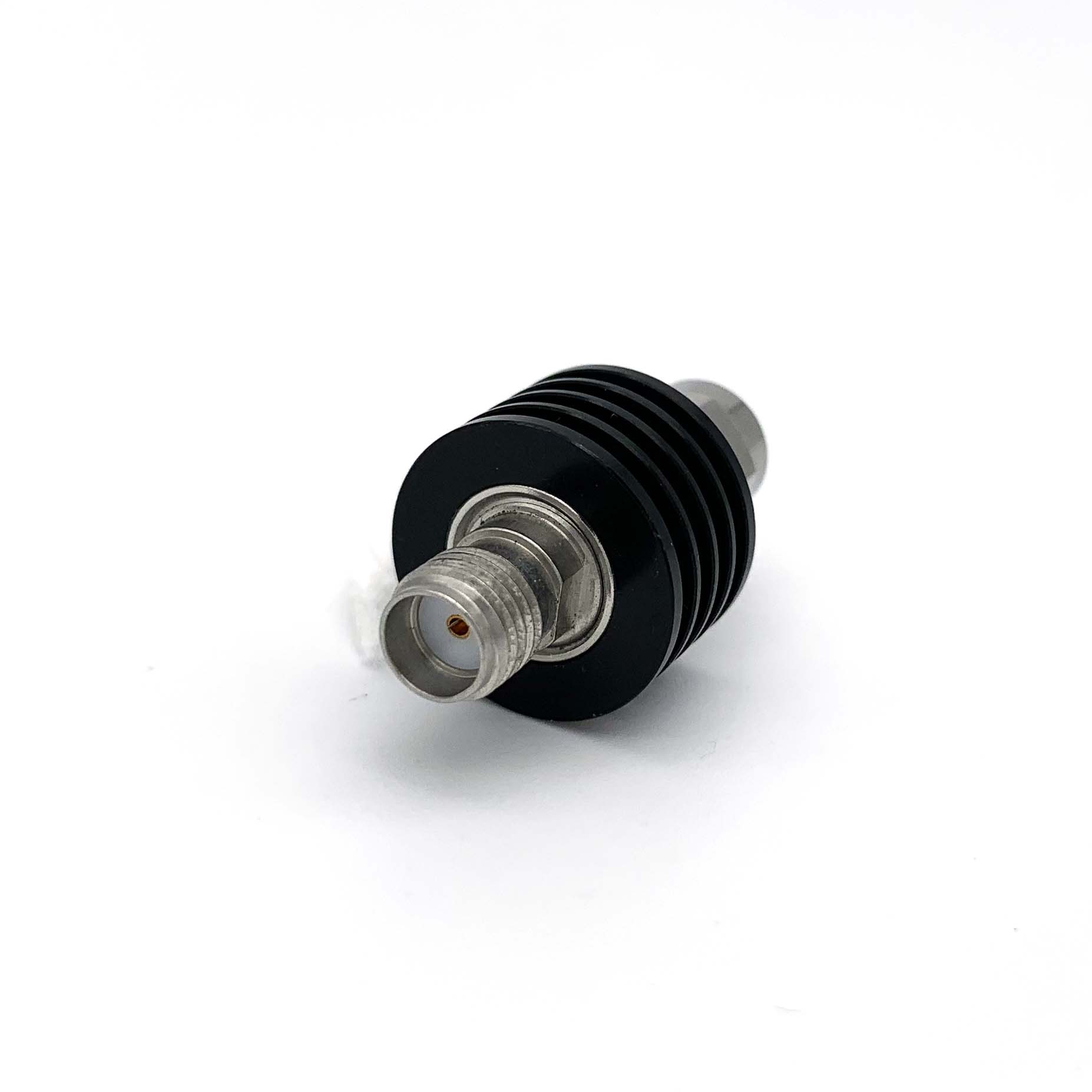

5W Fixed Attenuaor

Zysen provide DC-67GHz Fixed Attenuator，Power handling from 0.5 to 2000watts, attenuation range 0 to 80dB, connector SMA,N,2.92mm or chip, flange are available. Good VSWR, different customized VSWR 1.1 to 1.4 available depend on your application, quick lead time 1week around. Contact us with your requirement.

SMA Connector

P/N	Freq. Range (GHz)	Power Handling (W)	Attenuation (dB)	VSWR Max	Connector	Size (mm)
ZSJxx-5RS-4	DC-4	5	1~60	1.20	SMA M/F	Φ19x9
ZSJxx-5RS-8	DC-8	5	1~60	1.25	SMA M/F	Φ19x9
ZSJxx-5RS-12	DC-12	5	1~60	1.25	SMA M/F	Φ19x9
ZSJxx-5RS-18	DC-18	5	1~60	1.30	SMA M/F	Φ19x9

N Connector

P/N	Freq. Range (GHz)	Power Handling (W)	Attenuation (dB)	VSWR Max	Connector	Size (mm)
ZSJxx-5RN-4	DC-4	5	1~60	1.20	N M/F	Φ20x30
ZSJxx-5RN-8	DC-8	5	1~60	1.25	N M/F	Φ20x30
ZSJxx-5RN-12	DC-12	5	1~60	1.25	N M/F	Φ20x30
ZSJxx-5RN-18	DC-18	5	1~60	1.30	N M/F	Φ20x30

2.92mm Connector

P/N

Freq.
Range
(GHz)

Power
Handling
(W)

Attenuation
(dB)

VSWR
Max

Connector

Size

(mm)

ZSJxx-5RS-26.5

DC-26.5

1~60

1.15~1.30

SMA M/F

Φ19x9

ZSJXX-5RKA-40

DC-40

1~80

1.15~1.40

2.92mm M/F

Φ28x14.4
