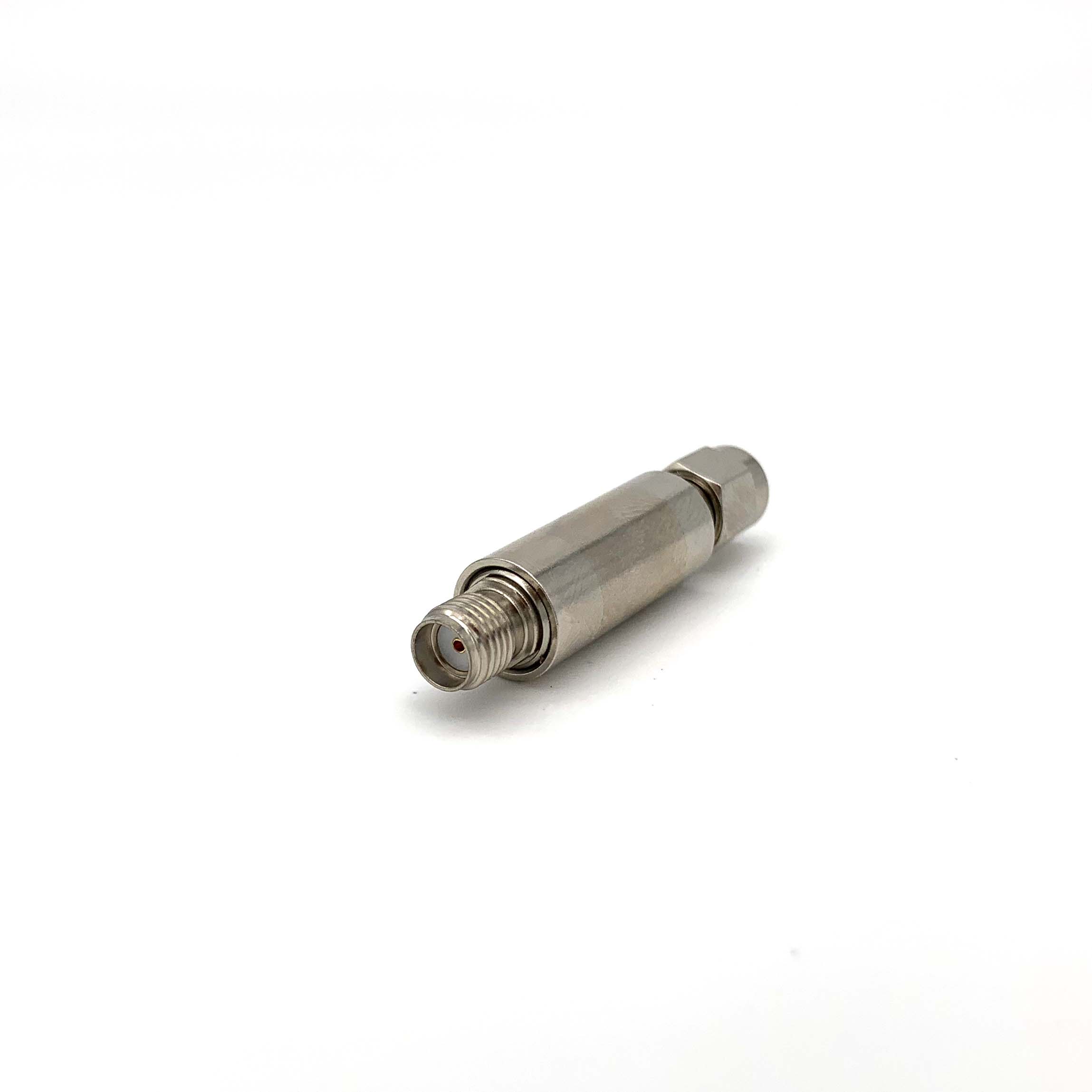

2W Fixed Attenuator

Zysen provide DC-67GHz Fixed Attenuator，Power handling from 0.5 to 2000 watts, attenuation range 0 to 80dB, connector SMA,N,2.92mm or chip, flange are available. Good VSWR, different customized VSWR 1.1 to 1.4 available depend on your application, quick lead time 1week around. Contact us with your requirement.

SMA Connector

P/N	Freq. Range (GHz)	Power Handling (W)	Attenuation (dB)	VSWR Max	Connector	Size (mm)
ZSJxx-2RS-4	DC-4	2	1~60	1.15~1.20	SMA M/F	L:24~27
ZSJxx-2RS-8	DC-8	2	1~60	1.20~1.25	SMA M/F	L:24~27
ZSJxx-2RS-12	DC-12	2	1~60	1.20~1.25	SMA M/F	L:24~27
ZSJxx-2RS-18	DC-18	2	1~60	1.25~1.30	SMA M/F	L:24~27
ZSJxx-2RS-26.5	DC-26.5	2	1~60	1.30~1.35	SMA M/F	L:24~27

N Connector

P/N	Freq. Range (GHz)	Power Handling (W)	Attenuation (dB)	VSWR Max	Connector	Size (mm)
ZSJxx-2RN-4	DC-4	2	1~60	1.20	N M/F	Φ16.5x45/48
ZSJxx-2RN-8	DC-8	2	1~60	1.25	N M/F	Φ16.5x45/48
ZSJxx-2RN-12	DC-12	2	1~60	1.35	N M/F	Φ16.5x45/48
ZSJxx-2RN-18	DC-18	2	1~60	1.45	N M/F	Φ16.5x45/48

2.92mm Connector

P/N

Freq.
Range
(GHz)

Power
Handling
(W)

Attenuation
(dB)

VSWR
Max

Connector

Size

(mm)

ZSJXX-2RKA-40

DC-40

1~80

1.12~1.45

2.92mm

Φ9x15.2

1.85mm Connector

P/N

Freq.
Range
(GHz)

Power
Handling
(W)

Attenuation
(dB)

VSWR
Max

Connector

Size

(mm)

ZSJXX-2RVA-67

DC-67

1~40

1.14~1.45

1.85mm

Φ9x16
