Power Dividers/Combiners 2~16w

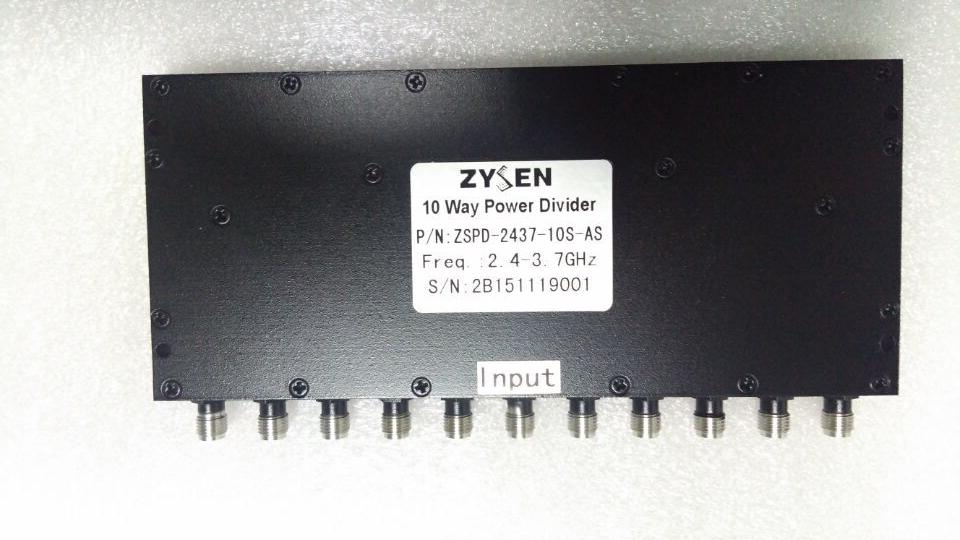

3,12,16-Way Power divider

Zysen offers other multiway power dividers(Combiner), include 3-way,12-way,16-Way and 32-way Power divider(Combiner).Conntector SMA,N are avaliable, frequency band can be customized, contact us with your requirement.


P/N

ways

Freq.
  Range
  (GHz)

I.L.
  (dB)
  max

Isolation
  (dB)
  max

Amp.

Balance
  (±dB)
  max

Phase

Balance
  (±°)
  max

VSWR

(In/Out)

max

Connector

Size

(LxWxH)
  (mm)

ZSPD-0520-3S

3

0.5-2

1

20

0.5

5

1.35

SMA

92X43X10

ZSPD-2040-3S

3

2-4

0.6

18

0.3

6

1.3

SMA

52X41X10

ZSPD-2080-3S

3

2-8

1

18

0.6

5

1.4/1.3

SMA

66.5X37.5X10

ZSPD-4080-3S

3

4-8

0.7

18

0.4

6

1.4/1.3

SMA

44X39X10

ZSPD-40180-3S

3

4-18

1.3

18

0.7

6

1.6/1.5

SMA

45X39X10

ZSPD-80180-3S

3

8-18

1

20

0.7

7

2/1.7

SMA

51X38X10

ZSPD-60180-3S

3

6-18

1.2

18

0.6

6

1.7/1.6

SMA

51X38X10

ZSPD-20200-3S

3

2-20

1.8

16

0.8

9

1.8/1.5

SMA

39x58x10

ZSPD-0825-3S

3

0.8-2.5

0.7

20

0.5

5

1.4/1.3

SMA

64X78X10

ZSPD-0727-3N

3

7-2.7

0.8

18

0.3

-

1.35/1.2

N

120x56x25

ZSPD-2040-3N

3

2-4

0.7

18

0.4

6

1.4/1.3

N

65x52x20

ZSPD-2080-12S

12

2-8

2.3

18

1

7

1.6

SMA

88X159X10

ZSPD-60180-12S

12

6-18

2.2

16

0.8

10

1.8/1.7

SMA

154X76X10

ZSPD-0825-16S

16

0.8-2.5

1.9

18

0.8

15

1.7/1.7

SMA

220X80X14
