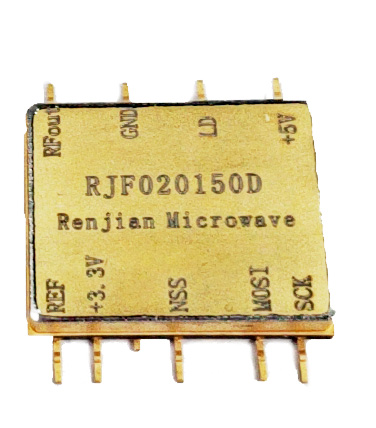

SMD Frequency Synthesizer
HTCC process technology is used to the frequency synthesizer, make microwave layer and body are fired in a kiln at the same time at high temperature.The advantages of HTCC packaging technology includes mechanical rigidity and hermeticity, both of which are important in high-reliability and environmentally stressful applications. Also has advantages of high temp. resistant, corrosion resistant, long operating life, temp. uniformity and good thermal conductivity.
Product Feature:
1. Freq. Range:0.1~6.2GHz
2. Compact SMT package: 15x12x3mm
3. Miniaturization, easy integration into various systems
4. Frequency Step ≥5MHz
5. Low Spurious, Low Power Consumption
6. External Reference
7. Operating Temperature: -40℃~ +85℃
P/N | Freq. Range (GHz) | Freq. Step (Hz) | Output Power (dBm) | Phase Noise Typ. dBc/Hz@1K dBc/Hz@10K | Spurious Typ. (dBc) | Harmonic Typ. (dBc) | Setting Time (us) |
RJG001062C | 0.1～6.2 | 5M | ≥10 | -93/-95 | -60 | -10 | ≤250 |
RJG001062D | 0.1～6.2 | 10M | ≥10 | -93/-95 | -63 | -10 | ≤200 |
RJG001062E | 0.1～6.2 | 20M | ≥10 | -93/-95 | -65 | -10 | ≤200 |
RJG001062F | 0.1～6.2 | 25M | ≥10 | -93/-95 | -65 | -10 | ≤200 |
RJG001062G | 0.1～6.2 | 50M | ≥10 | -93/-95 | -65 | -10 | ≤200 |
RJG001062H | 0.1～6.2 | 100M | ≥10 | -93/-95 | -65 | -10 | ≤200 |
lControl interface：SPI three lines； lPower Supply: +3.3V/150mA; +5V/100mA; lSetting time don’t include communication- time； lNote：Reference, frequency, step can be customized. | |||||||
For more details, pls. download data sheet
HTCC Miniaturized Frequency Synthesizer V2.1.pdf
