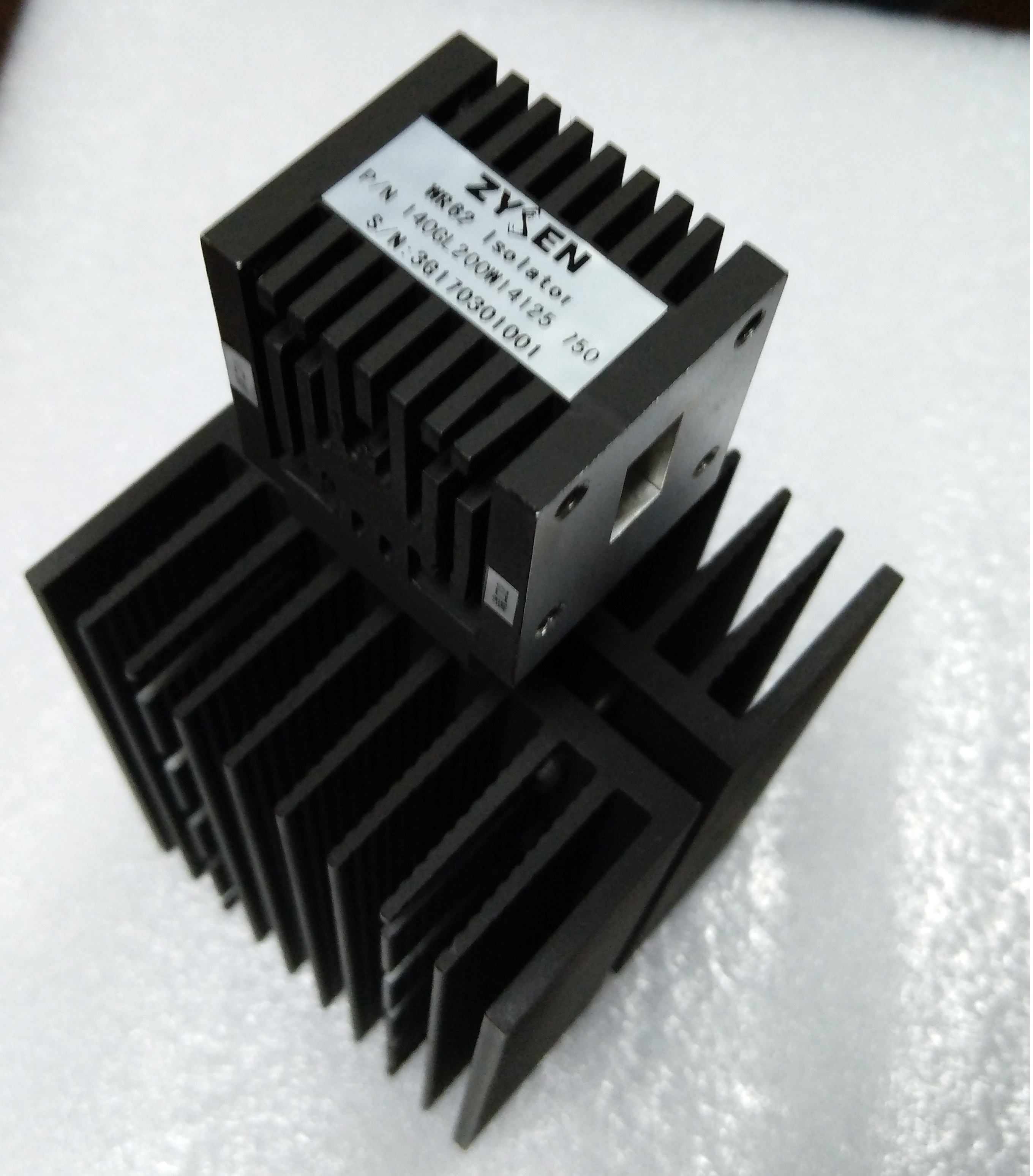

Ferrite Isolator

Waveguide Isolator, WR28 to WR650, High power handling,From 2GHz to 40GHz,1dB BW from 0 3% to 15%. Customized frequency and optimized specifications available. Contact us with your requirement.

P/N

Freq. Range*
  (GHz)

Band Width (MHz)

I. L.
  (dB)
  max

Isolation
  (dB)

VSWR
  max

Forward Power*
  (W CW)

Reverse
  Power
*
  (W CW)

WG Size

Flange Type

14GL20W

1.12-1.70

200

0.3

20

1.20

20

10

WR650

FDP14/FDM14

18GL20W

1.45-2.20

200

0.3

20

1.20

20

10

WR510

FDP18/FDM18

22GL20W

1.70-2.60

250

0.3

20

1.20

20

10

WR430

FDP22/FDM22

22GL200W

2.0-2.50

100

0.3

23

1.15

200

60

WR430

FDP22/FDM22

26GL20W

2.20-3.30

250

0.3

20

1.20

20

10

WR340

FDP26/FDM26

32GL20W

2.60-3.95

300

0.3

20

1.20

20

10

WR284

FDP32/FDM32

32GL200W

2.80-3.20

140

0.3

23

1.15

200

60

WR284

FDP32/FDM32

40GL20W

3.30-4.90

300

0.3

20

1.20

20

10

WR229

FDP40/FDM40

48GL20W

3.95-5.85

500

0.3

20

1.20

20

10

WR187

FDP48/FDM48

58GL20W

4.90-7.05

600

0.3

20

1.20

20

10

WR159

FDP58/FDM58

70GL20W

5.85-8.20

700

0.3

20

1.20

20

10

WR137

FDP70/FDM70

70GL100W

5.85-7.20

800

0.3

20

1.20

100

30

WR137

FDP70/FDM70

84GL20W

7.05-10.0

700

0.3

20

1.20

20

10

WR112

FBP84/FBM84

100GL20W

8.20-12.4

800

0.3

20

1.20

20

10

WR90

FBP100/FBM100

120GL20W

10.0-15.0

1000

0.3

20

1.20

20

10

WR75

FBP120/FBM120

140GL10W

12.4-18.0

1000

0.3

20

1.20

10

2

WR62

FBP140/FBM140

180GL10W

15.0-22.0

1000

0.3

20

1.20

10

2

WR51

FBP180/FBM180

220GL10W

18.0-26.5

2000

0.3

20

1.20

10

2

WR42

FBP220/FBM220

260GL10W

22.0-33.0

2000

0.3

20

1.20

10

2

WR34

FBP260/FBM260

320GL10W

26.5-40.0

2000

0.3

20

1.20

10

2

WR28

FBP320/FBM320
