Coupler WG/Coaxial/Hybrid

Directional Coupler

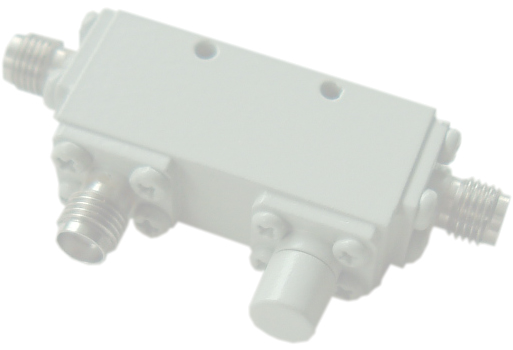

Zysen offer dierctional coupler and dual directional coupler. Up to 50GHz, narrow band and broard band are avaliable, Connector type SMA,N,2.92mm,2.4mm are optional. Customized frequency and optimized specifications available. Contact us with your requirement.

P/N

Freq. Range
  (GHz)

Coupling
  (dB)

Flatness
  (dB)

I.L.

(dB)

Directivity
  (dB)

VSWR

(max)

Connector

Size

(mm)

ZSDC-0525-10S

0.5-2.5

10±1.0

±0.7

0.5

20

1.2

SMA

133x15x11

ZSDC-0525-20S

0.5-2.5

20±1.0

±0.7

0.4

20

1.2

SMA

133x15x11

ZSDC-0525-30S

0.5-2.5

30±1.0

±0.7

0.3

20

1.2

SMA

133x15x11

ZSDC-0825-10S

0.8-2.5

10±1.0

±0.7

0.5

20

1.2

SMA

85x15x11

ZSDC-0825-20S

0.8-2.5

20±1.0

±0.7

0.4

20

1.2

SMA

85x15x11

ZSDC-0825-30S

0.8-2.5

30±1.0

±0.7

0.3

20

1.2

SMA

85x15x11

ZSDC-0825-10N

0.8-2.5

10±1.0

±0.7

0.5

20

1.25

N

96x20x20

ZSDC-0825-20N

0.8-2.5

20±1.0

±0.7

0.4

18

1.25

N

96x20x20

ZSDC-0825-30N

0.8-2.5

30±1.0

±0.7

0.4

18

1.25

N

96x20x20

ZSDC-1040-10S

1-4

10±1.0

±0.7

0.5

20

1.2

SMA

73x15x11

ZSDC-1040-20S

1-4

20±1.0

±0.7

0.4

20

1.2

SMA

73x15x11

ZSDC-1040-30S

1-4

30±1.0

±0.7

0.3

20

1.2

SMA

73x15x11

ZSDC-2080-6S

2-8

6±1.0

±1.0

0.5

20

1.2

SMA

43x15x11

ZSDC-2080-10S

2-8

10±1.0

±1.0

0.5

20

1.2

SMA

43x15x11

ZSDC-2080-20S

2-8

20±1.0

±1.0

0.4

20

1.2

SMA

43x15x11

ZSDC-2080-30S

2-8

30±1.0

±1.0

0.3

20

1.2

SMA

43x15x11

ZSDC-2080-30N

2-8

30±1.0

±1.0

0.4

15

1.3

N

53x20x20

ZSDC-20100-10N

2-10

10±1.0

±1.0

1.0

12

1.4

N

56x22x20

ZSDC-60120-10S

6-12

10±1.0

±0.7

0.7

13

1.4

SMA

33x15x11

ZSDC-40180-10S

4-18

10±1.0

±0.7

1.0

12

1.5

SMA

33x15x11

ZSDC-40180-20S

4-18

20±1.0

±1.0

0.8

12

1.5

SMA

33x15x11

ZSDC-20180-10S

2-18

10±1.0

±0.7

0.7

15

1.4

SMA

43x17x11

ZSDC-20180-20S

2-18

20±1.0

±0.7

0.7

15

1.4

SMA

43x17x11

ZSDC-10180-10S

1-18

10±1.0

±1.0

0.9

12

1.5

SMA

73x17x11

ZSDC-05180-20S

0.5-18

20±1.0

±1.5

1.4

12

1.35

SMA

113x15x11

ZSDC-80200-10S

8-20

10±1.0

±1.0

1.0

12

1.5

SMA

25.4x12.7x11

ZSDC-80200-20S

8-20

20±1.0

±1.0

1.0

12

1.5

SMA

25.4x12.7x11

ZSDC-60265-10S

6-26.5

10±1.0

±1.0

1.0

13

1.6

SMA

27x16x11

ZSDC-60265-20S

6-26.5

20±1.0

±1.0

0.8

13

1.6

SMA

27x16x11

ZSDC-10265-10S

1-26.5

10±1.0

±1.0

1.3

10

1.7

SMA

84x15x11

ZSDC-265400-20K

26.5-40

20±1.0

±0.9

1.2

12

1.7

2.92

26x15x11

ZSDC-200400-10K

20-40

10±1.0

±0.9

1.6

12

1.5

2.92

26x15x11

ZSDC-180400-20K

18-40

20±1.0

±0.9

1.0

10

1.6

2.92

26x15x11

ZSDC-60400-10K

6-40

10±1.0

±0.9

1.6

10

1.6

2.92

28x15x11

ZSDC-60400-20K

6-40

20±1.0

±0.9

1.1

10

1.6

2.92

28x15x11

ZSDC-20400-10K

2-40

10±1.0

±1.0

1.6

10

1.7

2.92

43x17x11

ZSDC-10400-10K

1-40

10±1.0

±1.0

2.5

10

1.6

2.92

84x15x11

ZSDC-60500-10K

6-50

10±1.0

±1.0

1.6

10

1.7

2.4

26x15x11


Dual Directional Coupler

P/N

Freq. Range
(GHz)

Coupling
(dB)

Flatness
(dB)

I.L.

(dB)

Directivity
(dB)

VSWR

(max)

Connector

Size

(mm)

ZSDDC-60180-30S

6-18

30±1.0

±0.9

1.0

10

1.5

SMA

86x17x11

ZSDDC-10400-30K

1-40

32.0

±1.5

4.6

10

1.9

SMA

168x17x11

ZSDDC-180400-10K

18-40

10±0.7

±0.7

1.6

10

1.7

SMA

56x17x11
